Schneider Electric C12F34V160L — Residual Current Breakers (RCCB/RCBO)

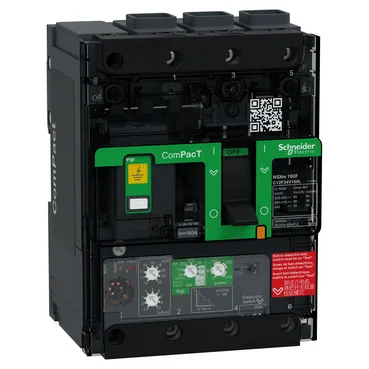

Schneider Electric C12F34V160L ComPacT NSXm MCCB, 160 A, 36

MPNC12F34V160L
Active

Schneider Electric ComPacT NSXm, C12F34V160L, 3P MCCB, 160 A at 40 °C, 36 kA at 415 V AC, MicroLogic 4.1 electronic trip unit with integrated earth-leakage protection.

$814.44Ref. price · indicative, final on quote
Schneider Electric C12F34V160L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C12F34V160L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C12F34V160L — Electrical Ratings
ParameterValue
Rated current (In)160 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C12F34V160L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160F
C12F34V160L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C12F34V160L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C12F34V160L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The C12F34V160L is a 3-pole ComPacT NSXm moulded-case circuit breaker rated 160 A at 40 °C, with a 36 kA breaking capacity at 415 V AC — performance level F. The MicroLogic 4.1 electronic trip unit gives you adjustable thermal-memory protection (20 minutes before and after tripping) plus integrated earth-leakage sensing selectable from 30 mA to 5 A, class A or AC. That saves an external RCCB module and one DIN position.

Backplate-mounted, 9-module pitch (144 mm high, 108 mm wide, 80 mm deep). Front terminals — Everlink lugs accept 2.5 to 95 mm² rigid aluminium/copper or 2.5 to 70 mm² fine-stranded copper. Connection pitch is 35 mm with spreaders, 27 mm without. Horizontal or vertical mounting on the backplate — no derating required for orientation.
