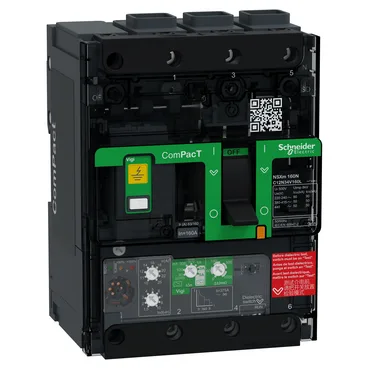

Schneider Electric C12N34V160L — Residual Current Breakers (RCCB/RCBO)

C12N34V160L ComPacT NSXm Earth Leakage Circuit Breaker, 160

MPNC12N34V160L
Active

Schneider Electric ComPacT NSXm, Earth leakage circuit breaker, 3P, 160 A, 50 kA 415 V AC, MicroLogic 4.1 electronic trip unit, grey (RAL 7016).

$834.13Ref. price · indicative, final on quote
Schneider Electric C12N34V160L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C12N34V160L — Residual Current Protection
ParameterValue
Earth-leakage sensitivity (IΔn)30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC
Earth-leakage protection class / typeClass A Class AC
Trip unit technologyElectronic
Local signalling / indicationFlag (green) for presence of auxiliary contacts
C12N34V160L — Electrical Ratings
ParameterValue
Rated current (In)160 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In
Mechanical durability (operating cycles)20000 cycles
C12N34V160L — Identification
ParameterValue
Product nameComPacT NSXm
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSXm 160N
C12N34V160L — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
Width in 9 mm modules9 module
C12N34V160L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude2000 m without derating 5000 m with derating
C12N34V160L — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The C12N34V160L is a Schneider Electric ComPacT NSXm earth leakage circuit breaker with a MicroLogic 4.1 electronic trip unit, rated 160 A at 40 °C and a breaking capacity of 50 kA at 415 V AC (performance level N). It's a 3-pole unit in a grey (RAL 7016) enclosure, 9 module pitches wide, designed for distribution applications where both overcurrent and earth-leakage protection are needed in one device.

That's a lot of functionality in one DIN-rail footprint — saves panel space and wiring compared to a separate RCD.

Mounts on a backplate (not a DIN rail — this is a bolted breaker). The enclosure is 144 mm high, 108 mm wide, 80 mm deep, and takes up 9 module pitches. Connection is front-facing on both line and load sides, with EverLink lugs that accept 2.5 to 95 mm² rigid or stranded copper/aluminum. It can be mounted horizontally or vertically flat on the back.

Overvoltage category IV (suitable for main distribution panels), IP40 protection (finger-safe, not washdown), and IK07 impact resistance. The integrated earth-leakage protection covers both class A (pulsating DC) and class AC (sinusoidal AC) fault currents, with sensitivity settings from 30 mA to 5 A — that covers most personnel and equipment protection requirements in industrial and commercial installations.

Frequently asked questions

Where can I buy C12N34V160L and how do I get a price?

We source this part to order against an RFQ. Submit a request for quote through our site, and we'll confirm availability and current pricing — no stock count or price is listed here because it fluctuates with market conditions.

What is the breaking capacity of C12N34V160L?

50 kA at 415 V AC (performance level N). That's the maximum fault current it can safely interrupt at that voltage.

What earth-leakage sensitivity settings does this breaker support?

It supports selectable sensitivity from 30 mA to 5 A, for both class A (pulsating DC) and class AC (sinusoidal AC) fault types. Common settings include 30 mA, 100 mA, 300 mA, 500 mA, 1 A, 3 A, and 5 A.
