Schneider Electric C16F34V160 — Residual Current Breakers (RCCB/RCBO)

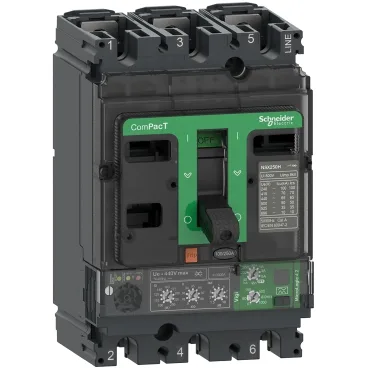

Schneider C16F34V160 ComPacT NSX MCCB, 160 A, 85 kA, 3-pole

MPNC16F34V160
Active

Schneider C16F34V160 Compact Nsx, New Generation — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$1,080.58 – $2,338.74Ref. price · indicative, final on quote
Schneider Electric C16F34V160 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

C16F34V160 — Residual Current Protection
ParameterValue
Earth-leakage protection class / typeClass A
Trip unit technologyElectronic
Local signalling / indicationFlashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload
C16F34V160 — Electrical Ratings
ParameterValue
Rated current (In)160 A at 40 °C
Rated operational voltage (Ue)440 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIV
Electrical durability40000 cycles at 440 V In/2 20000 cycles at 440 V In 15000 cycles at 690 V In/2 7500 cycles at 690 V In
Mechanical durability (operating cycles)40000 cycles
C16F34V160 — Identification
ParameterValue
Product nameComPacT NSX
Product / component typeEarth leakage circuit breaker
Product range / familyComPacT
Device short nameNSX160F
C16F34V160 — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
C16F34V160 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-50...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude0...2000 m without derating 2000 m...5000 m with derating
C16F34V160 — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

Overview

The C16F34V160 is a Schneider ComPacT NSX molded case circuit breaker rated 160 A at 40 °C with a breaking capacity of 85 kA ICu at 440 V AC. It is a 3-pole unit fitted with a MicroLogic 4.2 electronic trip unit providing L, So, I, and R protection. The breaker is in active production and available for current procurement.

Schneider lists the C16F34V160 as an active product with no announced end-of-life. It is available through standard distribution channels. For firm lead times and quantity pricing, submit an RFQ.

MPN
C16F34V160
