Name: C16H32D100
Brand: Schneider Electric
SKU: C16H32D100
Availability: LimitedAvailability

Specifications

Identification

C16H32D100 — Identification
Parameter	Value
Product / component type	Circuit breaker
Device application	Distribution

Electrical

C16H32D100 — Electrical
Parameter	Value
[In] rated current	100 A at 40 °C
Breaking capacity	100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1 65 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1 10 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1
[Ics] rated service breaking capacity	100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 35 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Ui] rated insulation voltage	800 V AC 50/60 Hz

Specifications

C16H32D100 — Specifications
Parameter	Value
Poles description	3P
Trip unit name	MicroLogic 2.2
Trip unit technology	Electronic
Device short name	NSX160H
Standards	EN/IEC 60947-2

Product details

Overview

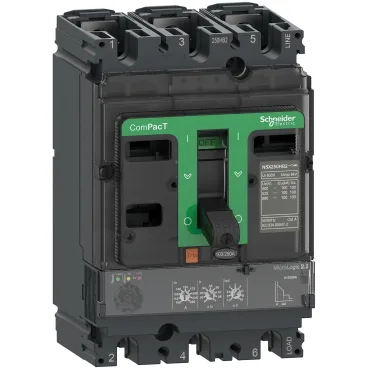

The C16H32D100 is a Schneider ComPacT NSX, new generation molded case circuit breaker, 3-pole, rated 100 A at 40 °C with a 100 kA interrupting capacity at 690 V AC. It carries a MicroLogic 2.2 electronic trip unit providing L, So, and I protection for distribution applications. The breaker is fixed-mounted with a toggle control and is in active production.

Lifecycle & availability

The C16H32D100 is an active, in-production part from Schneider. It is designed to EN/IEC 60947-2, carries a Class II front face IP rating, and meets IK07 impact protection per IEC 62262.

Specifications

Identification

C16H32D100 — Identification
Parameter	Value
Product / component type	Circuit breaker
Device application	Distribution

Electrical

C16H32D100 — Electrical
Parameter	Value
[In] rated current	100 A at 40 °C
Breaking capacity	100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1 65 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1 10 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1
[Ics] rated service breaking capacity	100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 35 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Ui] rated insulation voltage	800 V AC 50/60 Hz

Specifications

C16H32D100 — Specifications
Parameter	Value
Poles description	3P
Trip unit name	MicroLogic 2.2
Trip unit technology	Electronic
Device short name	NSX160H
Standards	EN/IEC 60947-2

Product details

Overview

Lifecycle & availability

The C16H32D100 is an active, in-production part from Schneider. It is designed to EN/IEC 60947-2, carries a Class II front face IP rating, and meets IK07 impact protection per IEC 62262.

Schneider C16H32D100 ComPacT NSX160H MCCB, 100 A, 100 kA

Specifications

Identification

Electrical

Specifications

Product details

Overview

Lifecycle & availability

Schneider C16H32D100 ComPacT NSX160H MCCB, 100 A, 100 kA
