Schneider Electric C25R36M220 — Residual Current Breakers (RCCB/RCBO)

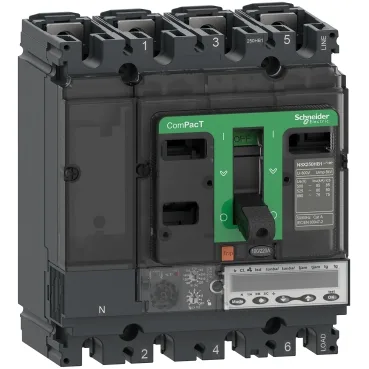

Schneider C25R36M220 ComPacT NSX circuit breaker, 220 A, 200 kA IC

MPNC25R36M220
Obsolete

Schneider Electric ComPacT NSX C25R36M220 molded case circuit breaker, 3-pole, 220 A switching current, 200 kA IC at 690 V AC, MicroLogic 6.2 E-M electronic trip unit, motor protection, fixed mount.

$1,809.53Ref. price · indicative, final on quote
Schneider Electric C25R36M220 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C25R36M220 — Residual Current Protection
ParameterValue
Trip unit technologyElectronic
Local signalling / indicationFlashing LED (green) for ready to operate LED 95 % Ith (red) for temperature over set point
C25R36M220 — Electrical Ratings
ParameterValue
Rated current (In)220 A at 65 °C
Rated operational voltage (Ue)690 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIII
Electrical durability20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In
Mechanical durability (operating cycles)20000 cycles
C25R36M220 — Identification
ParameterValue
Product nameComPacT NSX
Product / component typeCircuit breaker
Product range / familyComPacT
Device short nameNSX250R
C25R36M220 — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle
C25R36M220 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude0...2000 m without derating 2000 m...5000 m with derating
C25R36M220 — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

Overview

It carries a MicroLogic 6.2 E-M electronic trip unit offering adjustable L (long-time), So (short-time), I (instantaneous), and G (ground fault) protection, with an LCD display for metering and event logs.

Compared to the C10F3TM025 distribution breaker (85 kA IC, 25 A, fixed long-time delay), the C25R36M220 delivers 200 kA IC, 220 A, and adjustable long-time protection, making it the correct choice for motor circuits requiring coordination and high fault current withstand.

MPN
C25R36M220
