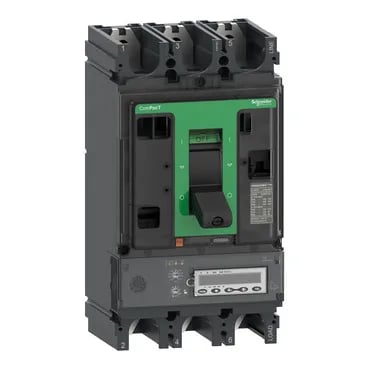

Schneider Electric C63R36M500 — Residual Current Breakers (RCCB/RCBO)

Schneider C63R36M500 ComPacT NSX 630A 3P MCCB, 200 kA at 415

MPNC63R36M500
Active

Schneider Electric ComPacT NSX series, C63R36M500, NSX630R 3-pole MCCB, 500 A rated, MicroLogic 6.3 E-M electronic trip unit, 200 kA Icu at 415 V AC, motor protection application.

$34.74Ref. price · indicative, final on quote
Schneider Electric C63R36M500 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Residual Current Protection

C63R36M500 — Residual Current Protection
ParameterValue
Trip unit technologyElectronic
Local signalling / indicationFlashing LED (green) for ready to operate LED 95 % Ith (red) for temperature over set point

Electrical Ratings

C63R36M500 — Electrical Ratings
ParameterValue
Rated current (In)500 A at 65 °C
Rated operational voltage (Ue)690 V AC 50/60 Hz
Poles description3P
Network typeAC
Network frequency50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Overvoltage categoryIII
Electrical durability8000 cycles at 440 V In/2 4000 cycles at 440 V In 6000 cycles at 690 V In/2 2000 cycles at 690 V In
Mechanical durability (operating cycles)15000 cycles

Identification

C63R36M500 — Identification
ParameterValue
Product nameComPacT NSX
Product / component typeCircuit breaker
Product range / familyComPacT
Device short nameNSX630R

Mechanical

C63R36M500 — Mechanical
ParameterValue
Mounting supportBackplate
Mounting positionHorizontal and vertical Flat on the back
Control typeToggle

Environmental

C63R36M500 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
Operating altitude0...2000 m without derating 2000 m...5000 m with derating

Approvals

C63R36M500 — Approvals
ParameterValue
StandardsEN/IEC 60947-2

Product details

The Schneider Electric C63R36M500 is a ComPacT NSX630R 3-pole moulded-case circuit breaker rated 500 A at 65 °C, fitted with a MicroLogic 6.3 E-M electronic trip unit. The toggle-operated breaker mounts on a backplate, connects front-top and front-bottom, and includes an LCD display for metering and protection settings.

The R-code breaking capacity delivers 200 kA Icu at 220/240 V AC and 380/415 V AC, 80 kA at 500 V AC, and 45 kA at 660/690 V AC. The MicroLogic 6.3 E-M trip unit provides L (long-time), So (short-time short-circuit), I (instantaneous), and G (ground-fault) protection. Motor tripping classes 5, 10, 20, and 30 are selectable, so it matches the thermal curve of a 500 A motor circuit — pump, conveyor, compressor — without nuisance tripping on start-up inrush.

Front-face connections top and bottom — 45 mm connection pitch — so it fits standard panel busbar layouts. Six accessory slots accommodate shunt trips, auxiliary contacts, or communication modules. The LCD display shows demand current, power, energy metering, time-stamped event logs, and protection settings — no separate panel meter needed for motor load monitoring.

Frequently asked questions

What is the breaking capacity of C63R36M500 at 415 V?

200 kA Icu at 380/415 V AC per IEC 60947-2. At 500 V AC it is 80 kA Icu; at 690 V AC it is 45 kA Icu.

What does the MicroLogic 6.3 E-M trip unit protect against?

It provides L (long-time overload), So (short-time short-circuit), I (instantaneous short-circuit), and G (ground-fault) protection. Motor tripping classes 5, 10, 20, and 30 are selectable.

Where can I buy C63R36M500?

This part is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
