Overview

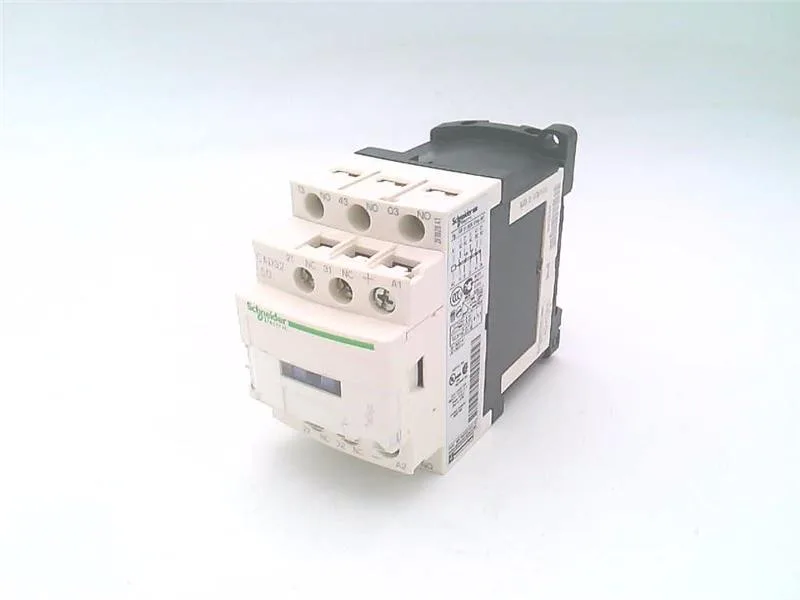

The CAD-32SD is a TeSys Deca control relay from Schneider, wired with 3 normally-open and 2 normally-closed contacts, rated for control circuits up to 690 V and energised by a 72 V DC standard coil. It carries certifications including CB, CCC, UL, CSA, EAC, CE, and UKCA, and is sealed to IP2X on the front face per VDE 0106.
Selection vs CAD32BL
The CAD-32SD shares the same TeSys Deca frame and 3 NO + 2 NC contact arrangement as the CAD32BL, but the CAD32BL runs on a 24 V DC coil instead of 72 V DC. Pick the CAD32BL when the control voltage is 24 V DC; stay with the CAD-32SD for 72 V DC control circuits.
Schneider lists the CAD-32SD as active in current production; lead time is confirmed via RFQ for the exact build code.
