Schneider Electric CAD326EDS135

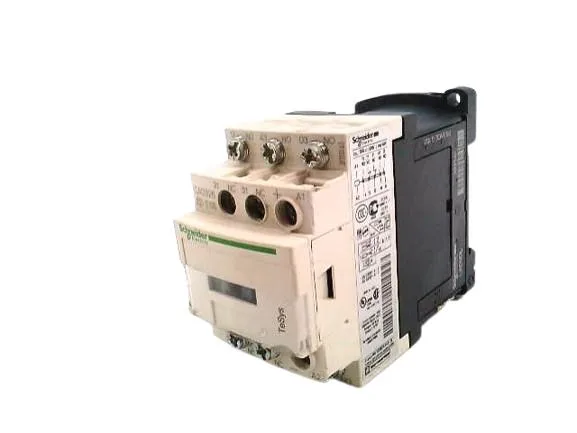

Schneider CAD326EDS135 DC Relay, 48 VDC Coil, 3NO-2NC, 10 A

MPN CAD326EDS135

Schneider Electric TeSys CAD326EDS135 DC-operated control relay, 48 VDC coil, 3NO-2NC contact configuration, 10 A at 600 VAC / 2.5 A at 600 VDC, 5-pole, 35 mm DIN rail mount, IP2X.

$114.59 – $245.35 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

CAD326EDS135 specifications
ParameterValue
TypeFixed
Product typeDC OPERATED
Terminal typeRING TONGUE
Coil voltage48 VDC
Poles5
Mounting35 MM DIN 3 Track

Product details

The CAD326EDS135: The 48 VDC coil makes this a DC-operated control relay, not an AC contactor — it pulls in on a DC control bus, common in battery-backed or PLC-driven panels where AC coil hum is undesirable. Contact configuration is 3 normally-open and 2 normally-closed poles, giving you five isolated switching paths. The mixed NO/NC arrangement suits interlocking circuits where you need both a seal-in and a safety-break contact from the same relay. Rated 10 A at 600 VAC and 2.5 A at 600 VDC — the DC rating is the limiting factor for inductive loads; at 48 VDC the contact can switch more current than the 600 VDC rating suggests, but the arc-quenching gap is sized for the 600 VDC ceiling. Compliant with IEC 60947-5-1 and EN 60947-5, the control-circuit switching standard that governs contact reliability and electrical endurance for industrial relay outputs.

DIN-rail fit and panel integration

IP2X enclosure provides finger-safe protection against solid objects >12.5 mm but is not sealed against moisture — install inside a cabinet with at least IP54 rating if the environment has condensation or washdown. Ring-tongue terminals require a crimp ring lug on each wire — plan for ring-tongue terminations in your panel bill of materials; they give a vibration-resistant connection compared to ferrules on a screw clamp.

Lifecycle and sourcing — current production, no replacement watch needed

Part of the TeSys series, Schneider's broadest control-relay family, which means compatible accessories (socket bases, clip-on suppressors, mechanical interlocks) are widely available and will remain so.
