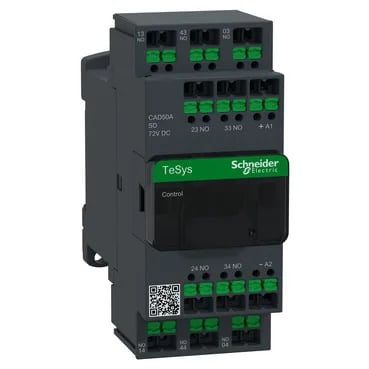

It's designed for control circuit switching in industrial panels, handling AC-15, AC-14, and DC-13 utilisation categories — meaning it's rated for solenoid and electromagnetic loads (AC-15), low-inductive loads (AC-14), and DC inductive loads like contactor coils (DC-13). The snap-in terminals simplify panel wiring, and the IP2X front face (per VDE 0106) provides basic finger protection on the panel door.
The 5NO contact configuration gives you five independent sets of normally open auxiliary contacts — useful for signalling, interlocking, or driving multiple loads from one relay. The 72 V DC coil is a common control voltage in DC-powered panels or systems with battery-backed control supplies. Rated operational voltage up to 690 V means it can switch control circuits on 400 V or 480 V systems without derating. The operating temperature range of -40 to 60 °C (with derating up to 70 °C) covers most indoor industrial environments, and the 0...3000 m altitude rating handles high-altitude installations without special consideration.
Mechanical ruggedness and compliance
This relay withstands 10 Gn shocks for 11 ms when open, and 15 Gn when closed, per IEC 60068-2-27. Vibration resistance is 2 Gn (open) and 4 Gn (closed) across 5...300 Hz per IEC 60068-2-6. That's enough for installation on machinery or in panels subject to moderate vibration. Standards compliance covers EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, and JIS C8201-5-1 — so it's accepted in North American, European, Chinese, and Japanese markets. The TH protective treatment (conforming to IEC 60068) means it's treated for tropical/humid environments.
