Schneider Electric CAK226BLS207 — Reversing Contactors

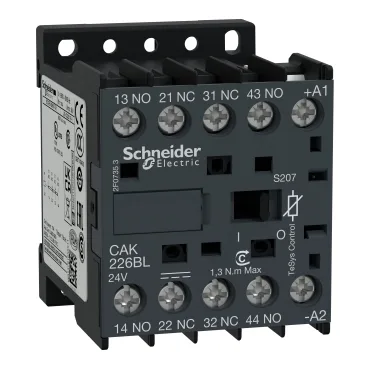

Schneider Electric CAK226BLS207

MPNCAK226BLS207
Active

Control relay, TeSys K S207 railway, 2NO+2NC, <= 690V, 24V DC low consumption coil

Schneider Electric CAK226BLS207 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

CAK226BLS207 — Identification
ParameterValue
Product rangeTeSys
Product nameTeSys CAK
Device short nameCAK
Product or component typeControl relay
CAK226BLS207 — Electrical
ParameterValue
Rated operational voltage [Ue]10 MOhm
CAK226BLS207 — Motor & Load
ParameterValue
Number of poles4P
Utilisation categoryAC-15 DC-13
CAK226BLS207 — Mechanical
ParameterValue
Height58 mm
Width45 mm
Depth57 mm
CAK226BLS207 — Environmental
ParameterValue
Operating ambient temperature-25...50 °C
Storage ambient temperature-50...80 °C
IP degree of protectionIP20 conforming to VDE 0106
Operating altitude2000 m without derating
Protective treatmentTC conforming to IEC 60068 TC conforming to DIN 50016
Vibration & shock resistanceVibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27
CAK226BLS207 — Approvals
ParameterValue
StandardsBS 5424 IEC 60947 VDE 0660 IEC 60077-1 IEC 60077-2 EN 45545: R22 HL3 NF C 63-110 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
MPN
CAK226BLS207
