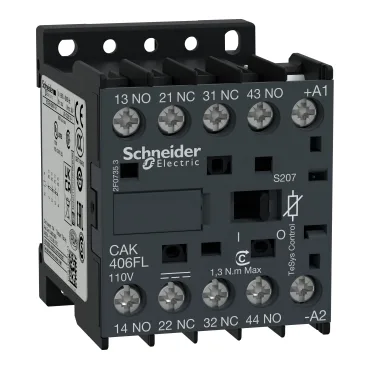

Schneider Electric CAK406FLS207
MPNCAK406FLS207
Active
Control relay, TeSys K S207 railway, 4NO, <= 690V, 110V DC low consumption coil
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product range | TeSys |
| Product name | TeSys CAK |
| Device short name | CAK |
| Product or component type | Control relay |
Electrical
| Parameter | Value |
|---|---|
| Rated operational voltage [Ue] | 10 MOhm |
Motor & Load
| Parameter | Value |
|---|---|
| Number of poles | 4P |
| Utilisation category | DC-13 AC-15 |
Mechanical
| Parameter | Value |
|---|---|
| Height | 58 mm |
| Width | 45 mm |
| Depth | 57 mm |
Environmental
| Parameter | Value |
|---|---|
| Operating ambient temperature | -25...50 °C |
| Storage ambient temperature | -50...80 °C |
| IP degree of protection | IP20 conforming to VDE 0106 |
| Operating altitude | 2000 m without derating |
| Protective treatment | TC conforming to IEC 60068 TC conforming to DIN 50016 |
| Vibration & shock resistance | Vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 |
Approvals
| Parameter | Value |
|---|---|
| Standards | BS 5424 IEC 60947 VDE 0660 IEC 60077-1 IEC 60077-2 EN 45545: R22 HL3 NF C 63-110 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
MPN
CAK406FLS207
