Schneider Electric ELNME4U75AAA
MPN ELNME4U75AAA
Active

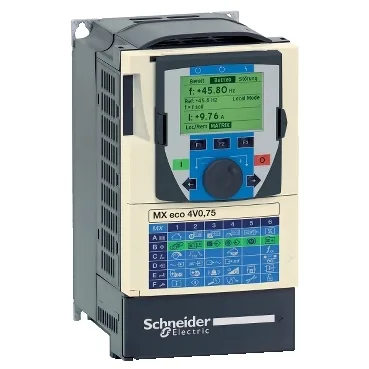

MX eco 4V7.5 - variable speed drive - 7.5kW - 400V - 3PH - EMC - IP20
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Connector type | 1 RJ45 (on terminal) for Modbus Male SUB-D 9 on RJ45 for CANopen |
| Main product or component type | Variable speed drive |
| Current | 27 A for 400 V, 3 phases, 7.5 kW (without choke) 22.2 A for 480 V, 3 phases, 10 hp (without choke) |
| Horsepower | 10 hp 3 phases for 460 V |
| Frequency | 50...60 Hz +/- 5 % |
| Temp storage max | 70 °C |
| Temp storage min | -25 °C |
| Temp operating max | 60 °C |
| Temp operating min | -10 °C |
| Storage temperature | -25...70 °C |
| Pollution degree | Pollution degree 2 |
| Depth | 187 mm |
| Width | 175 mm |
| Height | 295 mm |
| Data format | 8 bits, odd even or no configurable parity for Modbus on terminal 8 bits, 1 stop, even parity for Modbus on front face |
| Operating position | Vertical +/- 10 degree |
MPN
ELNME4U75AAA
