Schneider Electric ENW13281

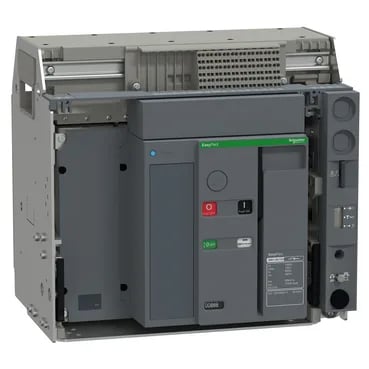

Schneider Electric ENW13281 EasyPact NW Switch Disconnector,

MPN ENW13281
Active

Schneider Electric EasyPact NW switch disconnector, ENW13281, 3-pole drawout, 1250 A rated operational current (AC-23A at 440 V), IEC 60947-3.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

ENW13281 key specifications
ParameterValue
Main product or component typeSwitch disconnector
Voltage440 V AC 50/60 Hz conforming to IEC 60947-3
Insulation voltage ui1000 V AC 50/60 Hz conforming to IEC 60947-3
CurrentAC-23 A: 1250 A AC 50/60 Hz 440 V
Utilization categoryAC-23 A
IP ratingIP30
Terminal pitch70 mm without spreader
Temp storage max85 °C
Temp storage min-40 °C
Temp operating max70 °C
Temp operating min-5 °C
Storage temperature-40...85 °C without control unit

All specifications

ENW13281 additional specifications
ParameterValue
Pollution degreeclass 3
Depth277 mm
Width358 mm
Height322 mm
Mechanical life cycles20000 cycles with maintenance conforming to IEC 60947-3 10000 cycles without maintenance conforming to IEC 60947-3
ApplicationDistribution
Operating temperature-5...70 °C

Product details

It carries a 1250 A rated operational current in utilisation category AC-23A at 440 V AC (50/60 Hz), meaning it handles the high inrush of motor loads and other inductive switching without derating — not just resistive break. The drawout mounting lets you rack the unit out for safe isolation without disturbing the power wiring, a key feature for panel maintenance or fault isolation in a live enclosure.

Short-time withstand (Icw) is 50 kA for 1 second at 220–440 V — that is the fault current the disconnector can carry without welding or damage until an upstream breaker clears. Short-circuit making capacity (Icm) is 75 kA at the same voltage range, confirming it can close onto a fault without destroying itself.

Mounts on a rail base plate with a drawout mechanism. The connection pitch is 70 mm without a spreader; rear connection supports both vertical and horizontal busbar arrangements. IP30 protection means it is splash-proof against tools and fingers but not water jets — suitable for enclosed switchgear, not washdown areas. The contact position indicator gives a visual open/closed state at a glance, which speeds up lockout-tagout verification.

MPN
ENW13281
