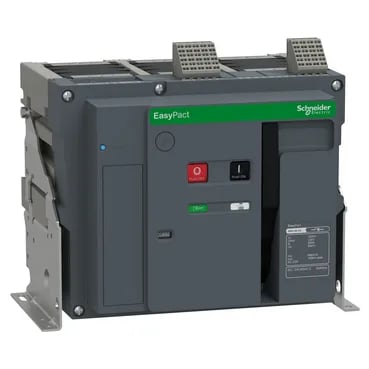

Schneider Electric ENW24179

Schneider Electric ENW24179 EasyPact NW Switch Disconnector,

MPN ENW24179
Active

Schneider Electric EasyPact NW, ENW24179, switch disconnector, 3200 A AC-23A, 3 poles, fixed mount, 50/60 Hz.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

ENW24179 key specifications
ParameterValue
Control typePush-button
Main product or component typeSwitch disconnector
Voltage690 V AC 50/60 Hz conforming to IEC 60947-3
Insulation voltage ui1000 V AC 50/60 Hz conforming to IEC 60947-3
CurrentAC-23 A: 3200 A AC 50/60 Hz 690 V
Utilization categoryAC-23 A
IP ratingIP40
Terminal pitch115 mm without spreader
Temp storage max85 °C
Temp storage min-40 °C
Temp operating max70 °C
Temp operating min-5 °C

All specifications

ENW24179 additional specifications
ParameterValue
Storage temperature-40...85 °C without control unit
Pollution degree4 conforming to IEC 60664-1
Depth297 mm
Width422 mm
Height352 mm
ApplicationDistribution
Operating temperature-5...70 °C

Product details

The Schneider Electric ENW24179 is a 3-pole switch disconnector in the EasyPact NW range, rated for 3200 A operational current in AC-23A duty at 690 V AC (50/60 Hz). That AC-23A utilisation category covers switching of motor loads and other highly inductive circuits — not just resistive break — so it handles the inrush and making/breaking demands of large motors, transformers, or capacitor banks. It is certified for isolation per IEC 60947-3, meaning you can rely on the visible contact position indicator to confirm a safe disconnect for downstream work.

Key ratings — the so-what for your panel

Rated short-time withstand current (Icw) is 50 kA for 1 second, or 25 kA for 3 seconds, at ambient up to 70 °C. That 50 kA for 1 s is the number you coordinate with upstream protection — if your fault-clearing device clears in under a second, the switch stays intact and the arc does not propagate. The rated short-circuit making capacity (Icm) is 105 kA peak AC, which covers the asymmetrical first peak of a fault. Electrical endurance: 5000 cycles at 440 V, 2500 cycles at 690 V, both AC-23A without maintenance. That is in line with a heavy-duty disconnector that sees regular load switching, not just infrequent isolation.

Fixed-mount on a base plate — not DIN-rail. The rear connection pitch is 115 mm without a spreader. Dimensions: 422 mm wide × 352 mm high × 297 mm deep.
