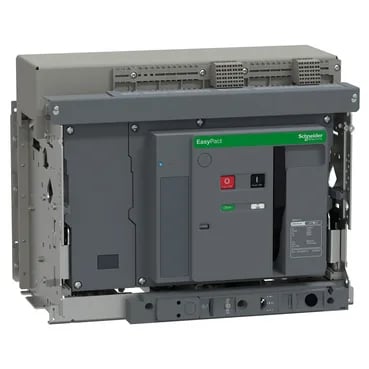

ENW24184 EasyPact NW Switch Disconnector, 1600A, 4P, Drawout

MPN ENW24184
Active

Schneider Electric EasyPact NW, switch disconnector, ENW24184, 1600 A (AC-23A), 4 poles, drawout, 395 mm depth, 556 mm width, 439 mm height.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

ENW24184 key specifications
ParameterValue
Control typePush-button
Main product or component typeSwitch disconnector
Voltage690 V AC 50/60 Hz conforming to IEC 60947-3
Insulation voltage ui1000 V AC 50/60 Hz conforming to IEC 60947-3
CurrentAC-23 A: 1600 A AC 50/60 Hz 690 V
Utilization categoryAC-23 A
IP ratingIP40
Terminal pitch115 mm without spreader
Temp storage max85 °C
Temp storage min-40 °C
Temp operating max70 °C
Temp operating min-5 °C

All specifications

ENW24184 additional specifications
ParameterValue
Storage temperature-40...85 °C without control unit
Pollution degree4 conforming to IEC 60664-1
Depth395 mm
Width556 mm
Height439 mm
Mechanical life cycles20000 cycles with maintenance conforming to IEC 60947-3 10000 cycles without maintenance conforming to IEC 60947-3
ApplicationDistribution
Operating temperature-5...70 °C

Product details

The Schneider Electric ENW24184 is a 4-pole switch disconnector in the EasyPact NW range, rated 1600 A in AC-23A duty at 690 V AC. Drawout mounting (withdrawal version) lets the unit be racked out for safe maintenance without unbolting main cables — a standard requirement in switchgear where the disconnector sits behind a closed door and the operator needs visible isolation before touching downstream gear. The rear-connection vertical or horizontal busbars accept a 115 mm connection pitch without a spreader. Rated impulse withstand voltage is 12 kV (IEC 60947-3), and the short-time withstand current is 50 kA for 1 s or 25 kA for 3 s.

Standards and deployment

The disconnector is certified to IEC 60947-3 and carries suitability for isolation (visible contact position indicator confirms open/closed state). IP40 protection covers the enclosure against solid objects >1 mm; no water ingress protection, so keep it indoors or in a weatherproof cabinet. Mechanical durability is 20,000 cycles with maintenance or 10,000 without; electrical durability in AC-23A is 6,000 cycles at 440 V and 4,000 cycles at 690 V. That's a robust duty cycle for a distribution-level switch — it's not a daily-operating disconnect for a motor starter, but it's fine for infrequent switching and isolation in a main distribution board where the switch sees a few operations per month.

The drawout chassis measures 395 mm deep, 556 mm wide, and 439 mm high. Neutral is on the left. Mounting is on a rail with a 115 mm connection pitch. Verify the switchgear cubicle depth before panel layout.
