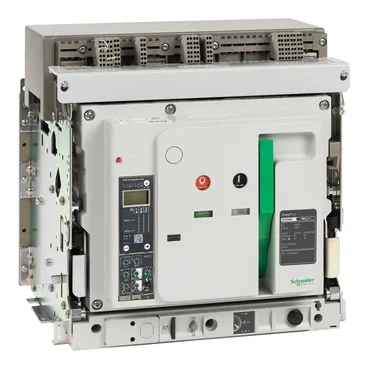

The Schneider Electric EVS32H3MW60 is an EasyPact EVS drawout circuit breaker rated 3200 A at 40 °C with a 65 kA Icu breaking capacity at 220–440 V AC. The electronic EVS Trip System6.0 gives you four protection curves: overload (long-time), instantaneous short-circuit, short-time short-circuit, and earth fault. For a distribution board feeding a 3200 A bus, this is the main breaker that sets the fault withstand for everything behind it.
Drawout mounting and panel integration
This breaker is drawout type — the moving portion slides out of a fixed cradle for safe inspection or swap without disturbing the bus connections. It mounts on a rail or base plate and takes rear vertical or horizontal connections. The 115 mm connection pitch without spreader tells you the busbar centers. At 441 mm wide × 439 mm high × 395 mm deep, it fills a standard switchgear cubicle; the IP40 enclosure keeps out tools and fingers but isn't sealed against washdown — this lives in a dry indoor MV/LV room.
