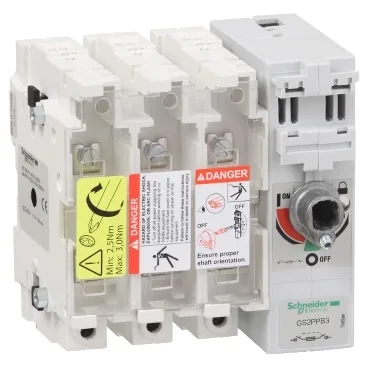

Schneider Electric GS2PPB3
MPNGS2PPB3
Active
Switch disconnector fuse, TeSys GS, 3P, 315A, fuse type BS, size B1, B2, B3
$956.56Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Fuse type | BS |
| Network type | AC DC |
| Type of operating handle | External right side External frontal |
| Product or component type | Switch-disconnector-fuse |
| Contacts type and composition | 3 NO |
| Short-circuit withstand | 40 kA |
| Voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Breaking capacity | 2520 A at 400 V (AC-23B) |
| [Ie] rated operational current | 200 A at 440 V 2 poles in series per phase DC-23A 200 A at 440 V 2 poles in series per phase DC-23B 250 A at 690 V AC-23A 315 A at 400 V AC-23A 315 A at 400 V AC-23B 315 A at 500 V AC-23A 315 A at 500 V AC-23B 315 A at 690 V AC-23B |
| [Icm] rated short-circuit making capacity | 80 kA at 400 V with protection by gG fuses |
| [Ith] conventional free air thermal current | 315 A (at 40 °C) |
All specifications
| Parameter | Value |
|---|---|
| Rated operational power in | 220 kW at 690 V 150 kW at 400 V 220 kW at 500 V 295 kW at 690 V |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
| Protected poles description | 3t |
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| Mounting support | Plate |
| Connections - terminals | Power circuit: bars 45 mm² Power circuit: lugs-ring terminals 185...240 mm² |
| Depth | 149 mm |
| Width | 252 mm |
| Height | 205 mm |
| Electrical durability | 1000 cycles AC-23A 1000 cycles AC-23B 200 cycles DC-23A 200 cycles DC-23B |
| Mechanical durability | 10000 cycles |
| Standards | IEC 60947-3 |
| Range | TeSys |
| Fuse size | B3 B2 B1 |
| Fire resistance | 850 °C fuse cover conforming to IEC 60695-2-1 960 °C body conforming to IEC 60695-2-1 |
| Making capacity | 3150 A at 400 V AC-23B |
| Device short name | GS2P |
| Tightening torque | Power circuit: 25 N.m |
| Ambient air temperature for storage | -40...80 °C |
| Ambient air temperature for operation | -20...70 °C |
MPN
GS2PPB3
