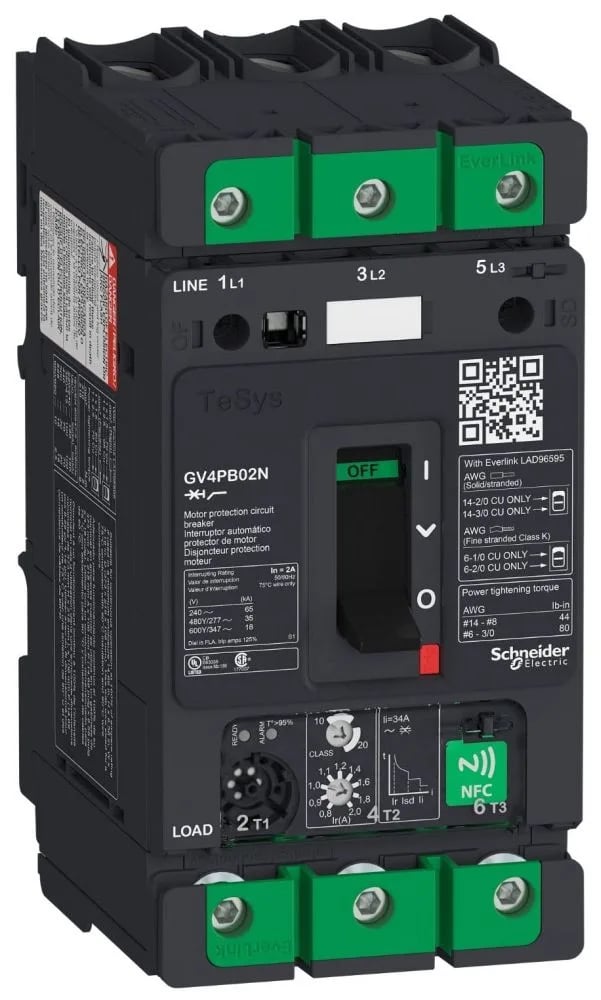

The GV4PB02N is a 2 A, 3-pole motor circuit breaker from the TeSys GV4 Deca range. It delivers 65 kA SCCR at 240 V AC UL and 100 kA Icu IEC, so it sits directly on high-fault panels without an upstream fuse. It carries a continuous duty rating and is certified for isolation per IEC 60947-1. Rated current is 2 A at 690 V AC maximum; the magnetic trip level at 34 A ensures coordination with downstream contactors. Power dissipation per pole is 4.6 W, so thermal buildup in a tight panel is manageable.
Dimensions and Wiring
Footprint is 3.2 in wide, 6.7 in high, 4.6 in deep — it fits standard motor starter slots. The body is Gray RAL 7016. Terminals are EverLink BTR screw type: top accepts 1.5–70 mm² rigid (1.5–50 mm² flexible), bottom accepts 2.5–95 mm² rigid (2.5–70 mm² flexible). Tightening torque is 9 N·m for power terminals and 5 N·m for control. Operating position is any, and altitude tolerance goes to 5000 m. Mechanical durability is 40,000 cycles; maximum operating rate is 25 cycles per hour. Climatic withstand per IACS ensures performance in humid environments.
