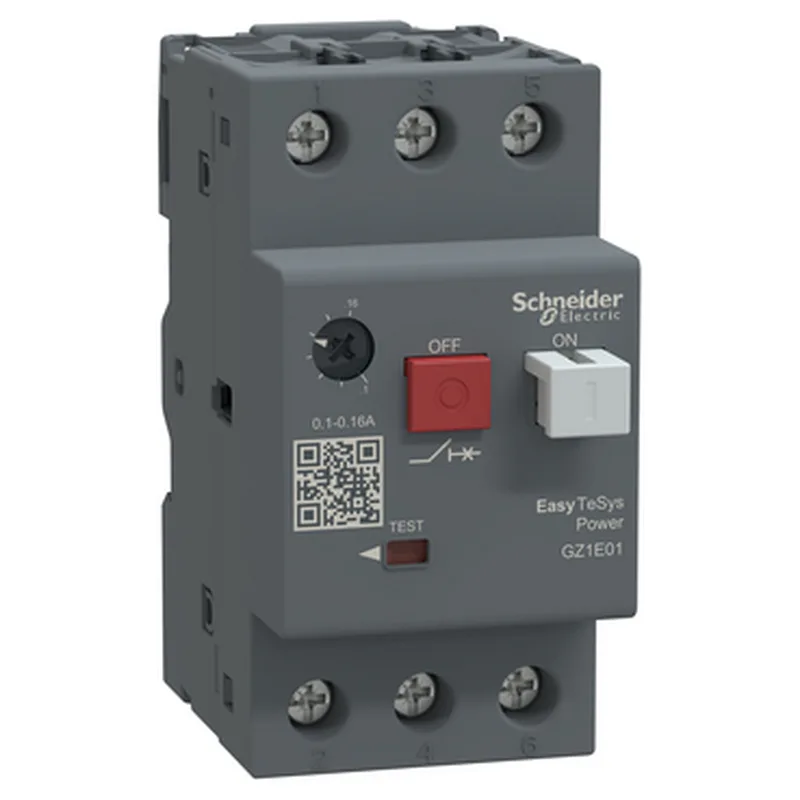

Schneider Electric GZ1E01

MPNGZ1E01

Active

Motor circuit breaker,Easy TeSys Power,GZ1E,AC-3,3P,0.1..0.16A,thermal magnetic trip

$17.82Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

GZ1E01 — Electrical
Parameter	Value
Network type (AC/DC)	AC
Rated operational voltage [Ue]	690 V AC 50/60 Hz conforming to IEC 60947-2
Rated insulation voltage [Ui]	690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage [Uimp]	6 kV conforming to IEC 60947-2
Network frequency	50/60 Hz conforming to IEC 60947-2
Poles description	3P

GZ1E01 — Protection & Performance
Parameter	Value
Breaking capacity	Icu: >= 100 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 690 V AC 50/60 Hz conforming to IEC 60947-2 Icu: >= 100 kA at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Trip unit technology	Thermal-magnetic
Suitability for isolation	Yes conforming to IEC 60947-1 appendix 7.1.6
Utilisation category	AC-3
Mechanical durability	100000 cycles
Electrical durability	100000 cycles for AC-3

GZ1E01 — Mechanical
Parameter	Value
Connections / terminals	Screw clamp terminals 2 1...6 mm² - cable stiffness: solid Screw clamp terminals 2 1.5...6 mm² - cable stiffness: flexible without cable end Screw clamp terminals 2 1...4 mm² - cable stiffness: flexible with cable end
Device short name	GZ1E
Control type	Push-button
Mounting mode	By screws By clips
Mounting support	Rail
Width	44.5 mm
Height	89 mm
Depth	78 mm
Colour	Grey (RAL 7011)
