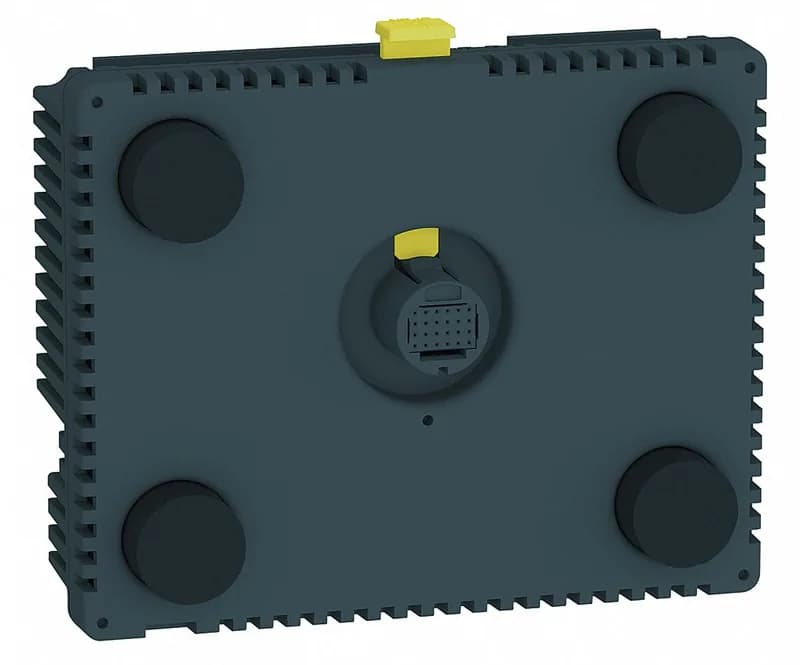

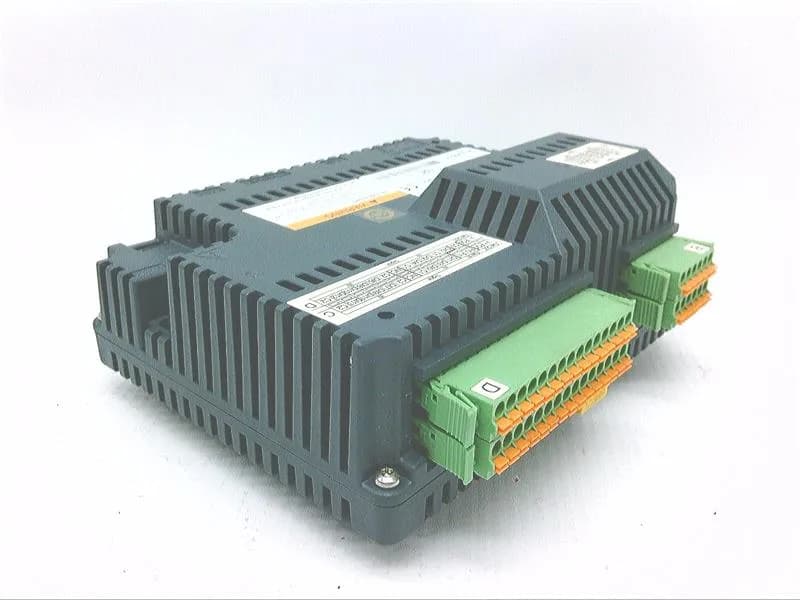

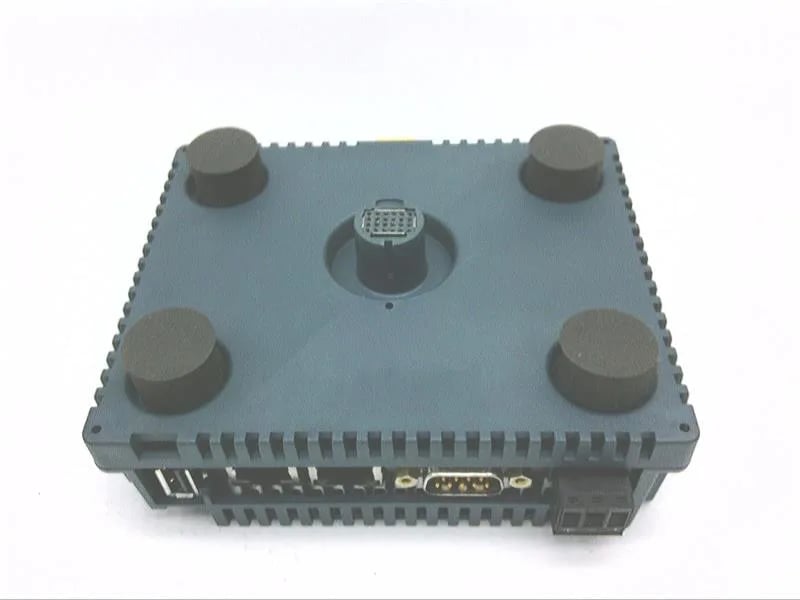

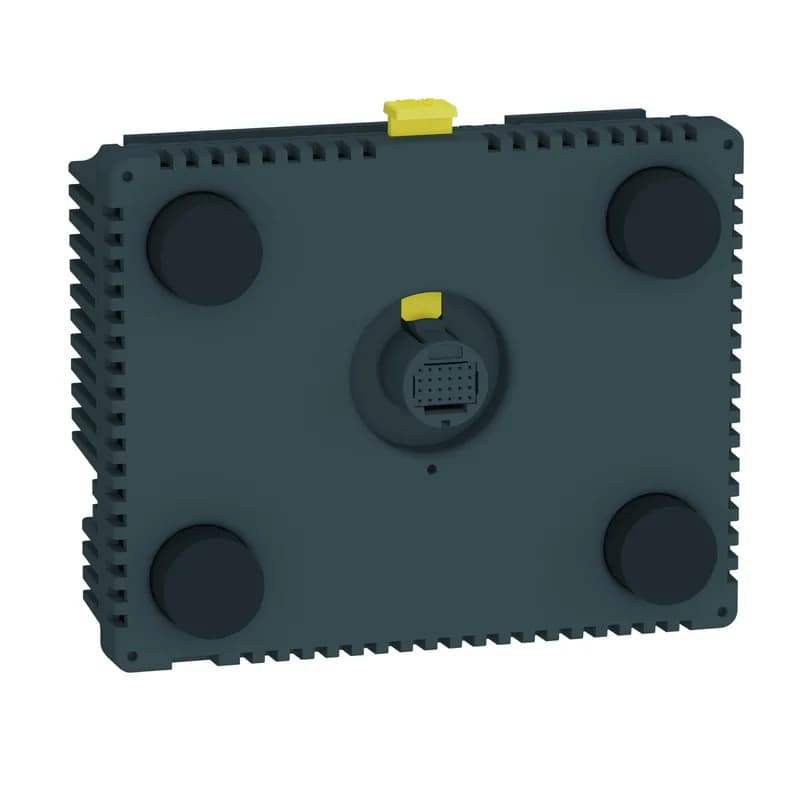

Schneider Electric HMISAC

Schneider HMISAC Harmony SCU Controller, 16 DI, IP65 front

MPNHMISAC
Active

Schneider Electric Harmony SCU controller, HMISAC, RISC CPU, 16 digital inputs, IP65/IP20, CE, UL 508.

$344.17Ref. price · indicative, final on quote
Schneider Electric HMISAC datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

HMISAC key specifications
ParameterValue
Range of productHarmony SCU
Product or component typeController
Integrated connection type1 serial link - RJ45 - RS232/RS485 (rate: 1 Ethernet TCP/IP - RJ45 1 USB 2.0 type mini B 1 USB 2.0 type A CANopen master bus - SUB-D 9
Discrete input voltage24 V DC, discrete input logic: sink or source (positive/negative)
Supply voltage24 V (20.4...28.8 V)DC
Inrush current30 A
Discrete input current7.83 mA for fast input 5 mA for digital
Sensor power supply15...28.8 V DC >= 15 V, current (state 1): >= 5 mA 15...28.8 V DC >= 15 V, current (state 1): >= 2.5 mA =N>=2)) 3...12 ms integrator (none/run/stop)
Power consumption in15 W
Maximum input frequency100 kHz for fast input (encoder mode) - control type A/B 100 kHz for fast input - control type single phase 100 kHz for fast input - control type pulse/direction
Maximum output frequency100 kHz for fast output (PTO mode) 1 kHz for fast output (PWM mode)
Enclosure materialPC/PBT

All specifications

HMISAC additional specifications
ParameterValue
IP degree of protectionIP20 (rear panel) conforming to IEC 60529 IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel
Downloadable protocolsModbus Modbus TCP/IP CANopen
Maximum cable distance between devicesShielded cable: Shielded cable: Unshielded cable: 10 MOhm between the I/O and internal logic > 10 MOhm between power supply and earth
Pollution degree2 conforming to IEC 60664
Shock resistance147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27 294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27
Storage altitude0...10000 m
Relative humidity5...85 % without condensation
Operating altitude<= 2000 m
Vibration resistance+/- 3.5 mm (f = 5...9 Hz) conforming to IEC 60068-2-6 1 gn (f = 9...150 Hz) conforming to IEC 60068-2-6
Depth102 mm
Width128 mm
Height50.65 mm
StandardsFCC Class A ANSI/ISA 12-12-01 UL 508 IEC 61000-6-2 EN 61131-2 CSA C22.2 No 213 Class I Division 2
SupplyExternal source
MarkingCE
Fixing modeBy 1 nut - diameter: Ø 22 mm, mounting on: 1...6 mm thick panel
Processor nameCPU RISC
Realtime clockBuilt-in
Input impedance4.7 kOhm 2.81 kOhm
Number of pagesLimited by internal memory capacity
Local signallingNo indicator
Maximum pressure800...1114 hPa
Operating systemHarmony
Memory descriptionFlash NAND, 128 MB Internal data storage FRAM, 128 kB Application run DRAM, 128 MB
Device presentationBasic element
Discrete input number2 for fast input (normal mode) conforming to IEC 61131-2 Type 1 14 for digital input conforming to IEC 61131-2 Type 1
Number of common point1 for fast input (HSC mode) 2 for digital input
Absolute accuracy error+/- 0.1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode) 1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode) +/- 5 % of full scale cyclic ratio 10...90% for fast output (PWM or PTO mode) +/- 10 % of full scale cyclic ratio 20...80% for fast output (PWM or PTO mode) +/- 15 % of full scale cyclic ratio 30...70% for fast output (PWM or PTO mode)
Immunity to microbreaks10 ms
Environmental characteristicCorrosive gas free
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4 Surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5 Surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5 Surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5 Surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5 Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 Conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011 Radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011
Ambient air temperature for storage-20...60 °C
Ambient air temperature for operation0...50 °C

Product details

HMISAC is a basic element controller from the Harmony SCU range, built around a RISC CPU with a realtime clock and onboard memory (128 MB flash, 128 kB FRAM, 128 MB DRAM). 14 digital inputs (Type 1, sink/source, 24 VDC) plus 2 fast inputs supporting encoder/single-phase/pulse-direction modes at 100 kHz. Panel-mount via a single Ø22 mm nut, accepting panels from 1 to 6 mm thick. Rated IP65 front panel, NEMA 4X, suitable for washdown environments.

Powered from an external 24 VDC supply, draws 15 W total. Communicates via Modbus, Modbus TCP/IP, or CANopen. Compliant with CE, FCC Class A, UL 508, CSA C22.2 No. 213 Class I Division 2, EN 61131-2, IEC 61000-6-2. Pollution degree 2 per IEC 60664, vibration tolerance per IEC 60068-2-6. Relative humidity 5 to 85% non-condensing.

Frequently asked questions

What is HMISAC's listed depth?

The depth is 102 mm.

What is HMISAC's listed width?

The width is 128 mm.

What compliance documentation does HMISAC carry?

It carries CE, FCC Class A, UL 508, CSA C22.2 No. 213 Class I Division 2, EN 61131-2, IEC 61000-6-2.
