Schneider Electric ILP2R852MB1A — Servo Drives

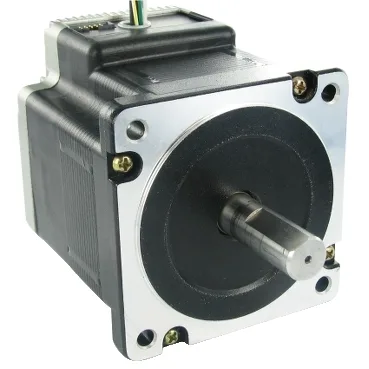

Schneider Electric ILP2R852MB1A

MPNILP2R852MB1A
Active

Motion integrated drive, Lexium integrated drive, ILP with 2-phase stepper motor, 24VDC to 48VDC, RS485, 3.12 Nm

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ILP2R852MB1A — Identification
ParameterValue
Device short nameILP
Product rangeLexium integrated drive
Product typeMotion integrated drive
ILP2R852MB1A — Electrical
ParameterValue
Rated supply voltage24...48 V
Supply voltage limits12...48 V
ILP2R852MB1A — Motor & Torque
ParameterValue
Continuous stall torque3.12 N.m
Peak stall torque3.12 N.m
Nominal speed150 rpm at 24 V 300 rpm at 48 V
Rotor inertia1.6 kg.cm²
Holding brakeWithout
ILP2R852MB1A — Feedback
ParameterValue
Feedback typeIndex pulse
Speed feedback resolution1000 steps 10000 steps 12800 steps 1600 steps 200 steps 2000 steps 20000 steps 25000 steps 25600 steps 3200 steps 400 steps 40000 steps 5000 steps 50000 steps 51200 steps 6400 steps 800 steps
ILP2R852MB1A — Mechanical
ParameterValue
Motor flange size85 mm
Length116.84 mm
ILP2R852MB1A — Environmental
ParameterValue
IP ratingIP20 total except shaft bushing: conforming to EN/IEC 60034-5 IP41 shaft bushing: conforming to EN/IEC 60034-5
MPN
ILP2R852MB1A
