Schneider Electric LA4EM250FK
MPNLA4EM250FK
Obsolete

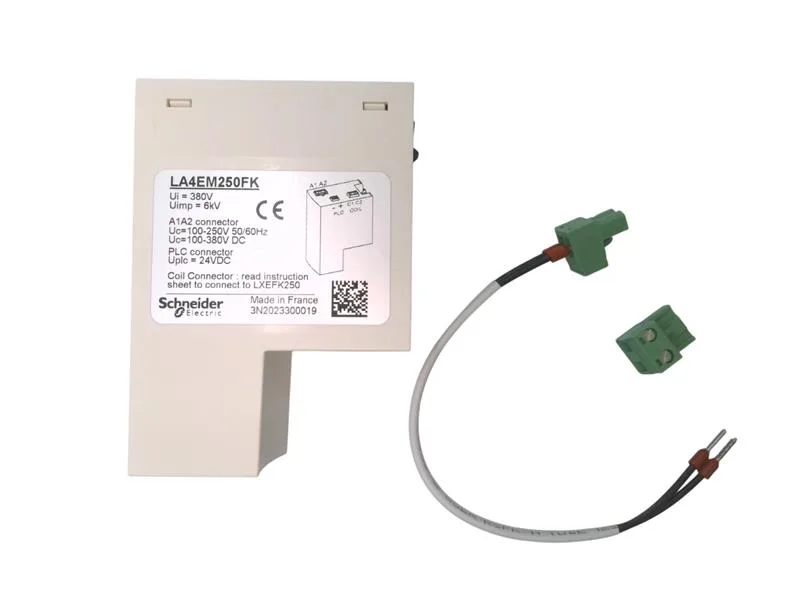

LA4EM250FK - ELECTRONIC CONTROL MODULE by SCHNEIDER ELECTRIC
$258.58Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC at 50/60 Hz DC |
| Product or component type | Electronic control module |
| Input voltage limits | 0...5 V off-state for PLC input 11...30 V on-state for PLC input |
| Coil voltage | 100...250 V AC 50/60 Hz 100...380 V DC |
| Control circuit voltage limits | Operational: 85...275 V AC 50/60 Hz (at 55 °C) Drop-out: 60 V AC 50/60 Hz (at 55 °C) Operational: 85...418 V DC (at 55 °C) Drop-out: 45 V DC (at 55 °C) |
| Inrush power in | 360...550 VA 50/60 Hz cos phi 0.5 (at 20 °C) |
| Hold-in power consumption in | 5...8 VA 50/60 Hz cos phi 0.5 (at 20 °C) |
| Connections - terminals | Control circuit: removable screw terminal block 1 cable(s) 0.2...2.5 mm² flexible without cable end Control circuit: removable screw terminal block 1 cable(s) 0.25...2.5 mm² flexible with cable end Control circuit: removable screw terminal block 1 cable(s) 0.2...2.5 mm² solid |
| Mechanical durability | 0.5 Mcycles |
| Range | TeSys |
| Coil technology | Built-in bidirectional peak limiting |
| Heat dissipation | 2.2...5.5 W |
| Device short name | LA4EM |
| Tightening torque | 0.6 N.m for control circuit |
| Input compatibility | PLC 24 V DC conforming to IEC 61131-2 Type 2 |
| Maximum operating rate | 1200 cyc/h 55 °C |
| Complementary required device | LXEFK250 |
MPN
LA4EM250FK
