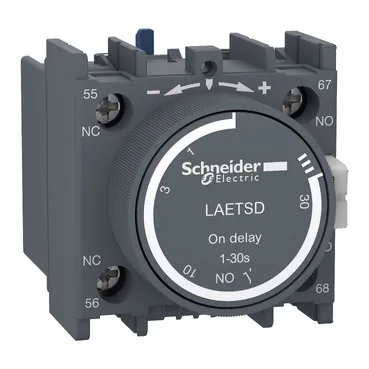

Schneider Electric LAETSD
MPNLAETSD
Active
EasyPact TVS - time delay - on delay - 1 NO + 1 NC
$33.07Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product type | Time delay auxiliary |
| Product range / family | Easy TeSys Control |
| Product range / family | Easy TeSys |
Ratings
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | 10 MOhm |
Performance
| Parameter | Value |
|---|---|
| Rated insulation voltage (Ui) | 690 V - for control circuit conforming to IEC 60947-5-1 |
Mechanical
| Parameter | Value |
|---|---|
| Terminal connections / wire range | Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end |
| IP degree of protection | IP20 conforming to IEC 60529 |
Environmental
| Parameter | Value |
|---|---|
| Operating ambient temperature | -5...55 °C |
| Storage ambient temperature | -60...80 °C |
| Operating altitude | 3000 m without derating |
| Protective treatment | TH conforming to IEC 60068 |
Approvals
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60947-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.5 EN/IEC 60335-1:Clause 30.2 EN/IEC 60335-2-40:Annex JJ |
