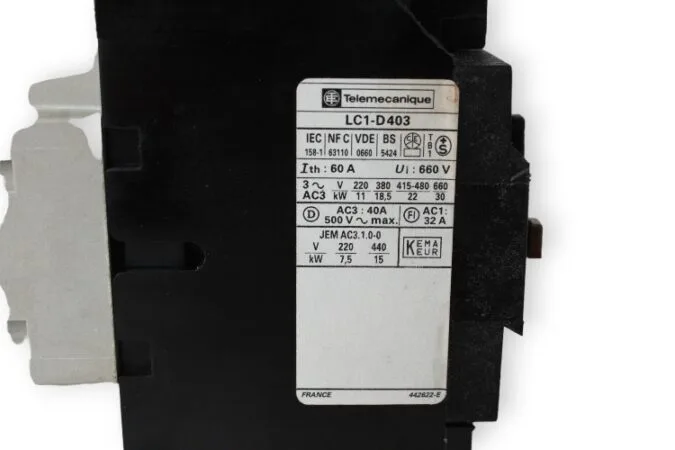

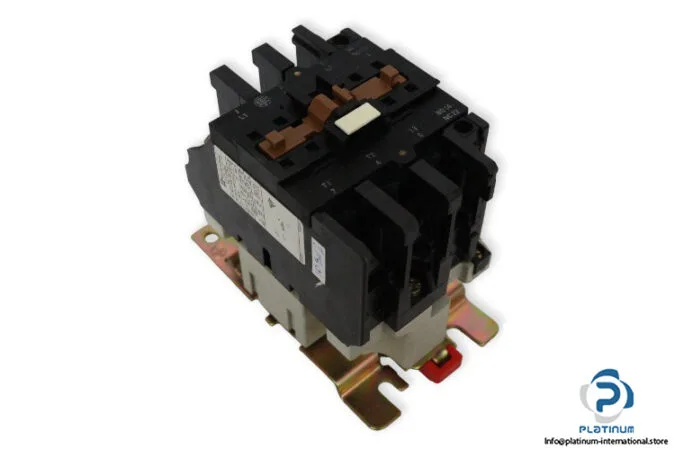

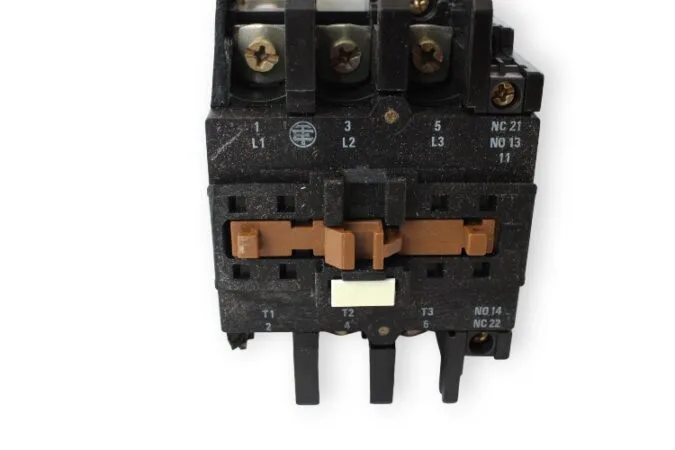

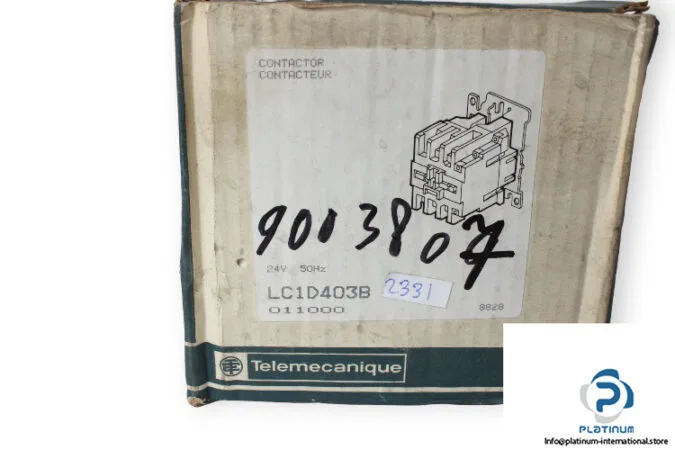

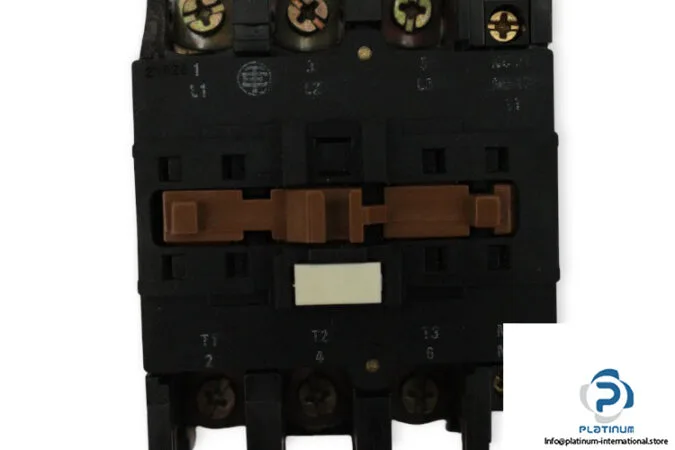

Schneider Electric LC1 D403
MPNLC1 D403
TELEMECANIQUE LC1-D403 CONTACTOR
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Contactor |
| Voltage type | AC |
| Type of product | Contactor |
| Contact voltage | 500 V AC |
| Coil voltage [V] | 24 |
| Insulation voltage | 660 V |
| Contact current | 32 … 40 A |
| Thermal current | 60 A |
| Power consumption | 11 … 30 kW (220 … 660 V AC, 3 ph)/ 22 kW (415 … 480 V AC) |
| Power at 400 v [kW] | 22 (415 ... 480 V AC) |
| Frequency | 50 Hz |
| Poles | 3 |
All specifications
| Parameter | Value |
|---|---|
| Contact configuration | 1 Normally Open, 1 Normally Close |
| Operating temperature | -60 … 80 °C |
| Weight | 1,28 kg |
| Model | LC1D403B |
| Contact | 1 Normally Open, 1 Normally Close |
| Condition | New |
| Shelf no. | 240222 |
| Manufacturer | Telemecanique |
MPN
LC1 D403
