Schneider Electric LC1D400086B7
MPNLC1D400086B7
Active

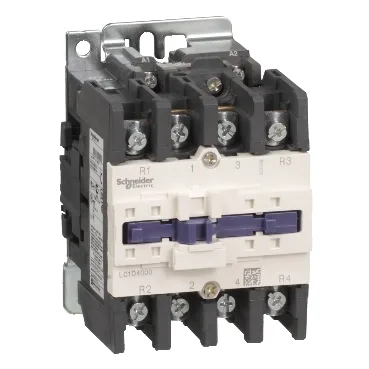

TeSys Deca contactor, 4P(2 NO + 2 NC), AC-1 <= 440V, 60 A, 24V AC 50/60 Hz coil
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Contactor |
| Series / range | TeSys |
| Application | Resistive load |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit: Power circuit: <= 300 V DC |
| Utilisation category | AC-1 |
| Parameter | Value |
|---|---|
| Pole configuration | 4P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Operating altitude | 0...3000 m |
| Mechanical robustness | Shocks contactor open (8 Gn for 11 ms) Shocks contactor closed (10 Gn for 11 ms) Vibrations contactor opened (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) |
| Protective treatment / pollution degree | TH conforming to IEC 60068-2-30 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Parameter | Value |
|---|---|
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 |
| Parameter | Value |
|---|---|
| Width | 85 mm |
| Height | 127 mm |
| Depth | 125 mm |
MPN
LC1D400086B7
