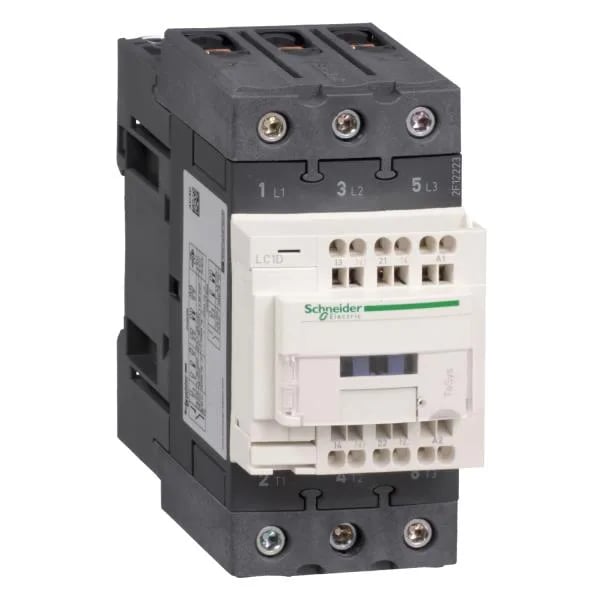

Schneider LC1D50A3FE7 TeSys Deca contactor, 50 A, 115 VAC coil (discontinued)

MPNLC1D50A3FE7

Obsolete

Schneider Electric TeSys Deca LC1D50A3FE7 contactor, 3-pole, 50 A AC-3 rating, 115 VAC 50/60 Hz coil, IP20, rail/plate mount, IEC/UL/CSA certified.

$116.84Ref. price · indicative, final on quote

Find equivalent or request quote

Schneider Electric LC1D50A3FE7 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

LC1D50A3FE7 key specifications
Parameter	Value
Range of product	TeSys Deca
Product or component type	Contactor
Climatic withstand	IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat
[Ue] rated operational voltage	Power circuit Power circuit 10 MOhm for signalling circuit
Poles description	3P
Utilisation category	AC-3 AC-4 AC-1
IP degree of protection	IP20 front face IEC 60529
Mounting support	Rail Plate
Operating altitude	0...9842.52 ft (0...3000 m)
Depth	4.7 in (120 mm)
Width	2.2 in (55 mm)
Height	4.8 in (122 mm)

All specifications

LC1D50A3FE7 additional specifications
Parameter	Value
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
Range	TeSys
Category	22357-CTR,TESYS D,OPEN,40-65A AC
Fire resistance	1562 °F (850 °C) IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Non-overlap time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Device short name	LC1D
Protective treatment	THIEC 60068-2-30
Contactor application	Resistive load Motor control
Mechanical robustness	Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor closed 15 Gn for 11 ms) Shocks contactor open 10 Gn for 11 ms)
Permissible ambient air temperature around the device	-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The LC1D50A3FE7 is a Schneider TeSys Deca three-pole contactor rated 50 A in AC-3 duty, energised by a 115 VAC 50/60 Hz coil. It carries IEC 60947-4-1, UL 508, and CSA C22.2 No 14 certifications, with an IP20 finger-safe enclosure.

Schneider discontinued the LC1D50A3FE7 on 2020-10-10.

The LC1D50A3FE7 carries 3 poles and a 50 A AC-3 rating. By contrast, the LC1DT25U7 is a 4-pole contactor rated 25 A AC-3 with a 12 V coil and 1NO-1NC auxiliary contacts. The LC1D50A3FE7 will not drop into a panel wired for the LC1DT25U7 without rewiring the coil circuit and rechecking pole count.
