The Schneider LC1D65004G6 is a TeSys D four-pole contactor rated for 80 A resistive loads (AC-1) and motor duty through AC-3 and AC-4 categories, with a 120 VAC 60 Hz coil. Rugged enough for a lube route: it takes shocks up to 8 Gn open and 10 Gn closed, vibration up to 3 Gn. IP2X protection keeps debris out of the arc chambers, and the TH treatment (IEC 60068) handles humidity without corrosion. Mounts on plate or DIN rail – 5.1 in deep, 3.3 in wide, 5 in tall. That footprint leaves room for aux contacts alongside. Operating altitude 3000 m without derating, and the flame retardance is V1 per UL 94.

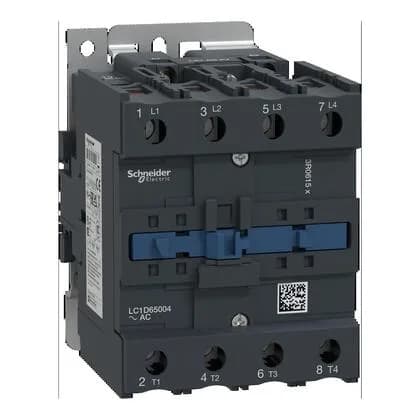

Schneider LC1D65004G6 Contactor 120VAC 80A
MPNLC1D65004G6
Active
Schneider Electric TeSys D, IEC contactor, non-reversing, 80 A resistive, 4 pole 4 NO, 120 VAC 60 Hz coil, open style.
$760.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| [Ue] rated operational voltage | Power circuit 10 MOhm for control circuit |
| Poles description | 4P |
| Utilisation category | AC-1 AC-3 AC-3e AC-4 |
| IP degree of protection | IP2X IEC 60529 IP2X VDE 0106 |
| Mounting support | Plate Rail |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Depth | 5.1 in (130 mm) |
| Width | 3.3 in (85 mm) |
| Height | 5 in (127 mm) |
| Standards | EN 60947-5-1 IEC 60947-4-1 UL 60947-4-1 EN 60947-4-1 CSA C22.2 No 14 IEC 60947-5-1 |
All specifications
| Parameter | Value |
|---|---|
| Category | US10I1222357 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts |
| Device short name | LC1D |
| Protective treatment | TH 3)IEC 60068 |
| Contactor application | Resistive load |
| Mechanical robustness | Shocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 3 Gn, 5...300 Hz) |
| Permissible ambient air temperature around the device | 23...140 °F (-5...60 °C) -40...158 °F (-40...70 °C) at Uc |
Product details
Frequently asked questions
What compliance standards does the LC1D65004G6 meet?
It complies with IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 14, EN 60947-4-1, and EN/IEC 60947-5-1. Fire resistance tested to 1562 °F (850 °C) per IEC 60695-2-1, and flame retardance is V1 per UL 94.
