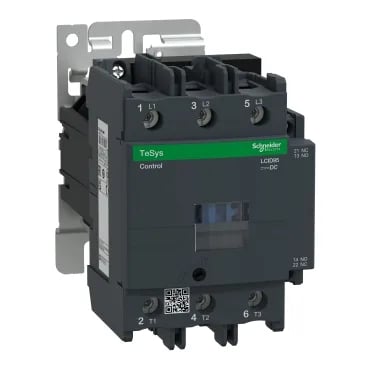

Schneider Electric LC1D95MD
MPNLC1D95MD
Obsolete
Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 95A, 220V DC standard coil, screw clamp terminals
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Product / component type | Contactor |
| Series / range | TeSys |
| Application | Motor control Resistive load |
Ratings & Performance
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit: 10 MOhm for signalling circuit |
| Utilisation category | AC-3 AC-3e AC-4 AC-1 |
Contacts & Poles
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
Environmental
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Operating altitude | 0...3000 m |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) Shocks contactor open (8 Gn for 11 ms) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor closed (10 Gn for 11 ms) |
| Protective treatment / pollution degree | TH conforming to IEC 60068-2-30 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
Approvals
| Parameter | Value |
|---|---|
| Standards | EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 UL 60947-4-1 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ IEC 60335-1:Clause 30.2 |
Mechanical
| Parameter | Value |
|---|---|
| Width | 85 mm |
| Height | 127 mm |
| Depth | 186 mm |
MPN
LC1D95MD
