Schneider Electric LC1G1154BEEA

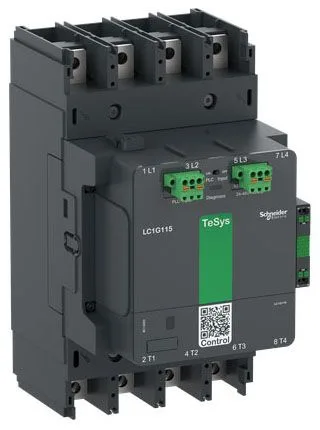

Schneider LC1G1154BEEA TeSys Giga IEC Contactor, 4-pole, 115 A, 48 V coil

MPNLC1G1154BEEA
Obsolete

Schneider TeSys Giga IEC contactor, order code LC1G1154BEEA, 4-pole, 115 A switching current, 48 V DC coil, AC-3/AC-3e/AC-1 utilization, plate mount, spring terminals, IP2X front face.

$1,055.00 – $1,434.84Ref. price · indicative, final on quote
Schneider Electric LC1G1154BEEA datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1G1154BEEA key specifications
ParameterValue
Range of productTeSys Giga
Product or component typeContactor
Coil voltage24...48 V AC 50/60 Hz 24...48 V DC
Voltage1000 V
Control circuit voltage limitsOperational: 0.8 Uc Min...1.1 Uc Max (at Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C))
[Ue] rated operational voltage<= 460 V DC
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current1.1 kA - 10 s 0.64 kA - 30 s 0.52 kA - 1 min 0.4 kA - 3 min 0.32 kA - 10 min
Breaking capacity1040 A at 440 V
[Ie] rated operational current115 A (at 250 A (at <104 °F (40 °C)) at <= 1000 V AC-1
[Ith] conventional free air thermal current250 A (at 104 °F (40 °C))
Inrush power in220 W

All specifications

LC1G1154BEEA additional specifications
ParameterValue
Power dissipation per pole10 W AC-1 - Ith 250 A 3 W AC-3 - Ith 115 A
Inrush power in VA (50/60 hz, AC)290 VA
Hold-in power consumption in5.7 W
Poles description4P
Pole contact composition4 NO
Utilisation categoryAC-3 AC-3e AC-1 AC-5a AC-5b AC-6a AC-6b DC-1 DC-3 DC-5
IP degree of protectionIP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106
Mounting supportPlate
Connection pitch1.4 in (35 mm)
Connections - terminalsPower circuit: bar 2 - busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 0.3 in² (185 mm²) Power circuit: bolted connection Control circuit: push-in 1 0.0003...0.004 in² (0.2...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in² (0.25...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in² (0.5...1.0 mm²) with cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: flexible with cable end
ColorDark grey
Depth7.6 in (193 mm)
Width5.6 in (143 mm)
Height10.04 in (255 mm)
Mechanical durability8 Mcycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 UL 60335-1 UL 60335-2-40:Annex JJ
RangeTeSys
CategoryUS10I1222329
Operating time40...70 ms closing 15...50 ms opening
Coil technologyBuilt-in bidirectional peak limiting
Average impedance0.00018 Ohm
Device short nameLC1G
Tightening torque159.3 lbf.in (18 N.m)
Compatibility codeLC1G
Overvoltage categoryIII
Protective treatmentTH
Contactor applicationPower switching
Mechanical robustnessVibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed
Associated fuse rating125 A aM at 125 A aM at 315 A gG at 300 A UL Type J at <= 600 V
Maximum operating rate600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1
Safety reliability levelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1560 A at 440 V
Auxiliary contact composition1 NO + 1 NC
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C) at Uc

Product details

Overview

The LC1G1154BEEA is a Schneider TeSys Giga IEC contactor, 4-pole normally open, rated for 115 A switching current in AC-3 and AC-3e utilization categories. The coil is 48 V DC with built-in bidirectional peak limiting, and the contactor carries a 1.04 kA breaking capacity (ICU) per IEC 60947-4-1. It mounts to a plate, uses spring-loaded terminals with a 35 mm pitch, and is rated IP2X on the front face with shrouds. The device is part of the single-phase TeSys Giga range and is designed for power switching applications.

Applications

IEC contactors of this class are the primary switching element in motor control centers, pump panels, conveyor drives, compressor starters, and HVAC equipment. The 4-pole NO configuration is common for three-phase motor circuits with an additional pole for auxiliary switching or neutral isolation.

The LC1G1154BEEA sits in Schneider's TeSys Giga range, the current-generation IEC contactor platform that replaced the older TeSys F and TeSys D series. The Giga line offers higher breaking capacities and a unified accessory system across the frame sizes. This 115 A, 4-pole variant is specified by panel builders and OEMs who need a compact, high-cycle contactor for 48 V DC coil control — common in North American control panels where 48 V DC is a standard control voltage.

The LC1G1154BEEA is an active, current-production part in the TeSys Giga range. Schneider provides compliance documentation covering EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, and JIS C8201-5-1. The contactor also carries UL 60335-1 and UL 60335-2-40 Annex JJ for appliance and HVAC applications.

MPN
LC1G1154BEEA
