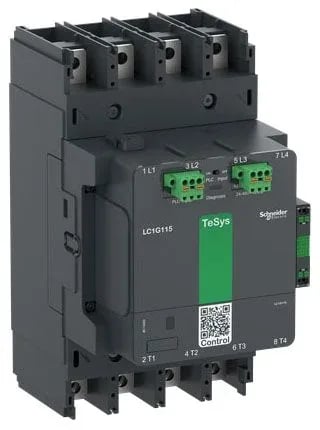

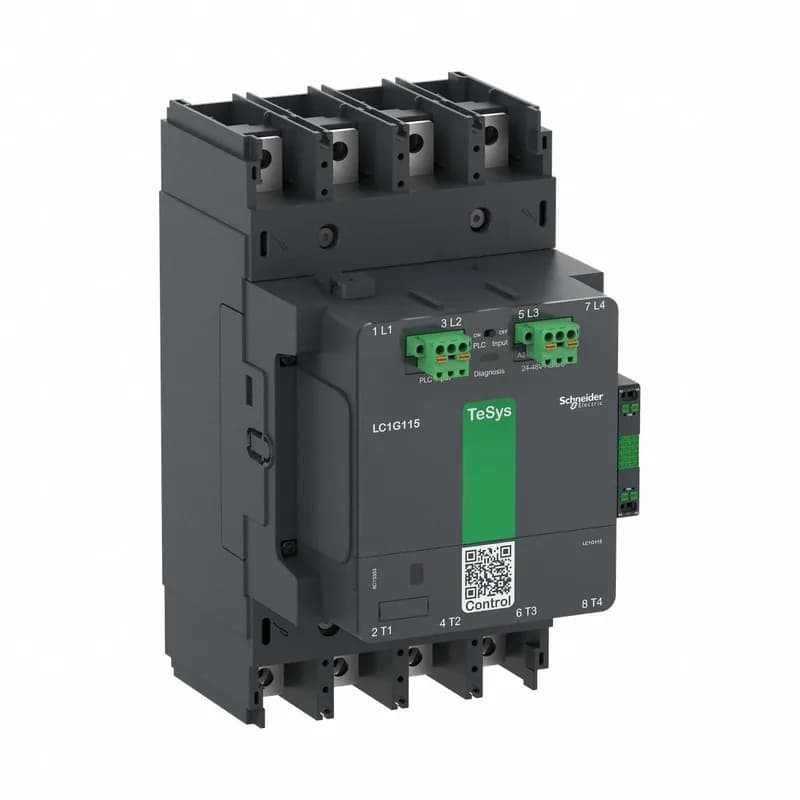

Schneider Electric LC1G1154EHEA

Schneider Electric LC1G1154EHEA TeSys Giga Contactor, 4P, 11

MPNLC1G1154EHEA
Active

Schneider Electric TeSys Giga, Contactor, 4P, 115A AC-3, 48-130VAC/DC, IP2X front face.

$1,055.00 – $1,365.03Ref. price · indicative, final on quote
Schneider Electric LC1G1154EHEA datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1G1154EHEA key specifications
ParameterValue
Range of productTeSys Giga
Product or component typeContactor
Coil voltage48...130 V AC 50/60 Hz 48...130 V DC
Voltage1000 V
Control circuit voltage limitsOperational: 0.8 Uc Min...1.1 Uc Max (at Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C))
[Ue] rated operational voltage<= 460 V DC
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current1.1 kA - 10 s 0.64 kA - 30 s 0.52 kA - 1 min 0.4 kA - 3 min 0.32 kA - 10 min
Breaking capacity1040 A at 440 V
[Ie] rated operational current115 A (at 250 A (at <104 °F (40 °C)) at <= 1000 V AC-1
[Ith] conventional free air thermal current250 A (at 104 °F (40 °C))
Inrush power in190 W

All specifications

LC1G1154EHEA additional specifications
ParameterValue
Maximum horse power rating30 hp at 200/208 V 60 Hz 40 hp at 230/240 V 60 Hz 75 hp at 460/480 V 60 Hz 100 hp at 575/600 V 60 Hz
Power dissipation per pole10 W AC-1 - Ith 250 A 3 W AC-3 - Ith 115 A
Inrush power in VA (50/60 hz, AC)260 VA
Hold-in power consumption in5.0 W
Poles description4P
Pole contact composition4 NO
Utilisation categoryAC-3 AC-3e AC-1 AC-5a AC-5b AC-6a AC-6b DC-1 DC-3 DC-5
IP degree of protectionIP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106
Mounting supportPlate
Connection pitch1.4 in (35 mm)
Connections - terminalsPower circuit: bar 2 - busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 0.3 in² (185 mm²) Power circuit: bolted connection Control circuit: push-in 1 0.0003...0.004 in² (0.2...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in² (0.25...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in² (0.5...1.0 mm²) with cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: flexible with cable end
ColorDark grey
Depth7.6 in (193 mm)
Width5.6 in (143 mm)
Height10.04 in (255 mm)
Mechanical durability8 Mcycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 UL 60335-1 UL 60335-2-40:Annex JJ
RangeTeSys
CategoryUS10I1222329
Operating time40...70 ms closing 15...50 ms opening
Coil technologyBuilt-in bidirectional peak limiting
Average impedance0.00018 Ohm
Device short nameLC1G
Tightening torque159.3 lbf.in (18 N.m)
Compatibility codeLC1G
Overvoltage categoryIII
Protective treatmentTH
Contactor applicationPower switching
Mechanical robustnessVibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed
Associated fuse rating125 A aM at 125 A aM at 315 A gG at 300 A UL Type J at <= 600 V
Maximum operating rate600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1
Safety reliability levelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1560 A at 440 V
Auxiliary contact composition1 NO + 1 NC
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C) at Uc

Product details

The Schneider Electric LC1G1154EHEA is a 4-pole contactor from the TeSys Giga range, rated for power switching in motor and resistive loads per utilization categories AC-3, AC-3e, AC-1, and several others. Its AC-3 continuous current rating is 115 A per pole, dissipating 3 W per pole at that load, and it can handle 250 A in AC-1 resistive duty with 10 W per pole dissipation.

Ratings that drive the fit

With 4 normally open poles, this contactor switches three-phase motors without a neutral or can be wired for separate load groups. The 115 A AC-3 rating means it comfortably handles a 75 hp motor at 460/480 V (per the horsepower table) while staying within the rated breaking capacity of 1040 A at 440 V and making capacity of 1560 A.

Frequently asked questions

What standards does this contactor comply with?

It complies with EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, UL 60335-1, and UL 60335-2-40 Annex JJ.
