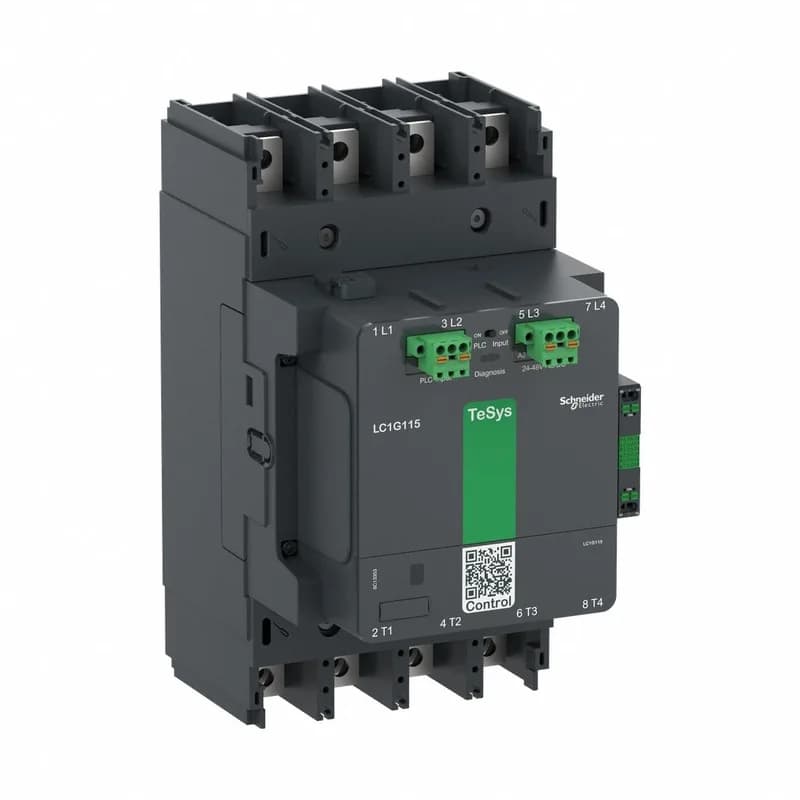

Schneider LC1G1154LSEA TeSys Giga Contactor, 115A AC-3

MPNLC1G1154LSEA
Active

Schneider TeSys Giga LC1G1154LSEA, 4-pole contactor, 200-500 V AC/DC coil, 115 A AC-3, 250 A AC-1.

$1,055.00 – $1,167.17Ref. price · indicative, final on quote
Schneider Electric LC1G1154LSEA datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1G1154LSEA key specifications
ParameterValue
Range of productTeSys Giga
Product or component typeContactor
Coil voltage200...500 V AC 50/60 Hz 200...500 V DC
Voltage1000 V
Control circuit voltage limitsOperational: 0.8 Uc Min...1.1 Uc Max (at Drop-out: 0.1 Uc Max...0.45 Uc Min (at <140 °F (60 °C))
[Ue] rated operational voltage<= 460 V DC
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current1.1 kA - 10 s 0.64 kA - 30 s 0.52 kA - 1 min 0.4 kA - 3 min 0.32 kA - 10 min
Breaking capacity1040 A at 440 V
[Ie] rated operational current115 A (at 250 A (at <104 °F (40 °C)) at <= 1000 V AC-1
[Ith] conventional free air thermal current250 A (at 104 °F (40 °C))
Inrush power in215 W

All specifications

LC1G1154LSEA additional specifications
ParameterValue
Power dissipation per pole10 W AC-1 - Ith 250 A 3 W AC-3 - Ith 115 A
Inrush power in VA (50/60 hz, AC)295 VA
Hold-in power consumption in8.0 W
Poles description4P
Pole contact composition4 NO
Utilisation categoryAC-3 AC-3e AC-1 AC-5a AC-5b AC-6a AC-6b DC-1 DC-3 DC-5
IP degree of protectionIP2X front face with shrouds IEC 60529 IP2X front face with shrouds VDE 0106
Mounting supportPlate
Connection pitch1.4 in (35 mm)
Connections - terminalsPower circuit: bar 2 - busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 0.3 in² (185 mm²) Power circuit: bolted connection Control circuit: push-in 1 0.0003...0.004 in² (0.2...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.0004...0.004 in² (0.25...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: push-in 2 0.0008...0.002 in² (0.5...1.0 mm²) with cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: solid stranded without cable end Control circuit: push-in 0.001...0.004 in² (0.75...2.5 mm²) - cable stiffness: flexible with cable end
ColorDark grey
Depth7.6 in (193 mm)
Width5.6 in (143 mm)
Height10.04 in (255 mm)
Mechanical durability8 Mcycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 UL 60335-1 UL 60335-2-40:Annex JJ
RangeTeSys
CategoryUS10I1222329
Operating time40...70 ms closing 15...50 ms opening
Coil technologyBuilt-in bidirectional peak limiting
Average impedance0.00018 Ohm
Device short nameLC1G
Tightening torque159.3 lbf.in (18 N.m)
Compatibility codeLC1G
Overvoltage categoryIII
Protective treatmentTH
Contactor applicationPower switching
Mechanical robustnessVibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed
Associated fuse rating125 A aM at 125 A aM at 315 A gG at 300 A UL Type J at <= 600 V
Maximum operating rate600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1
Safety reliability levelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1560 A at 440 V
Auxiliary contact composition1 NO + 1 NC
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-13...140 °F (-25...60 °C)
Permissible ambient air temperature around the device-40...158 °F (-40...70 °C) at Uc

Product details

Integrator note – LC1G1154LSEA

The Schneider LC1G1154LSEA TeSys Giga is a 4-pole power contactor with a built-in bidirectional peak limiting coil accepting 200...500 V AC at 50/60 Hz or 200...500 V DC. It covers utilisation categories AC-3, AC-3e, AC-1, AC-5a/b, AC-6a/b, DC-1, DC-3, and DC-5 – meaning it handles motor switching, resistive loads, and DC circuits. Rated making capacity is 1560 A at 440 V; breaking capacity is 1040 A at the same voltage. Mechanical durability hits 8 million cycles, so it suits high-duty applications like conveyor lines or compressor banks.

Mounting & connections – panel layout

Mounts on a plate with a connection pitch of 35 mm (1.4 in). Power circuit terminals accept bar (max 25 x 6 mm), lugs/ring terminals up to 185 mm², or bolted connection. Control circuit uses push-in terminals: 0.2…2.5 mm² solid/stranded, 0.25…2.5 mm² with ferrules. Tightening torque for main connections is 18 N·m (159.3 lbf·in). IP2X front protection when shrouds are fitted. Power dissipation per pole runs 10 W at AC-1 (Ith 250 A) and 3 W at AC-3 (Ith 115 A). Auxiliary contacts: 1 NO + 1 NC built in.
