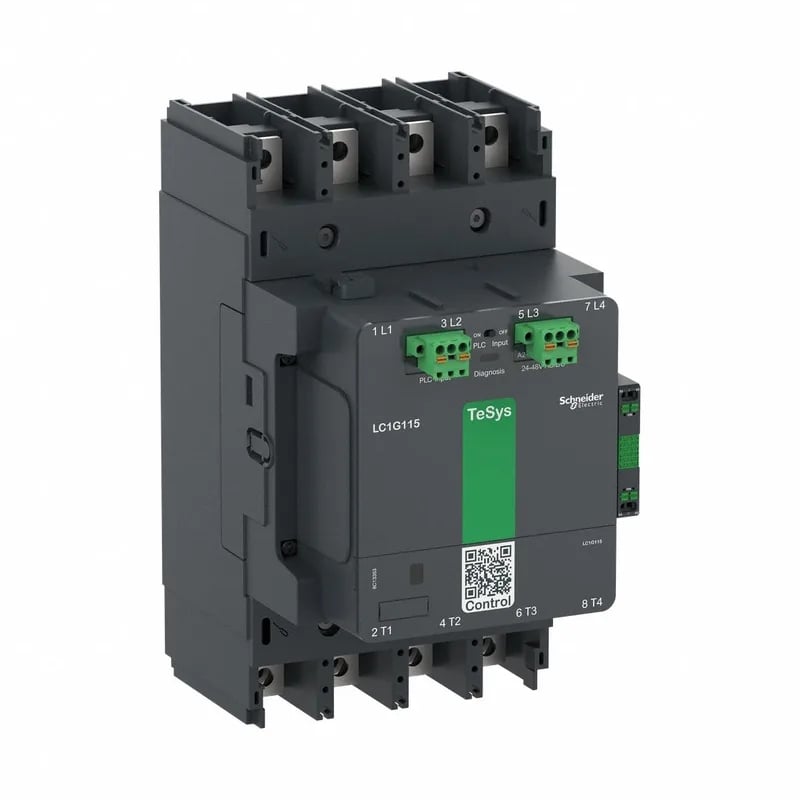

Schneider LC1G1504BEEA TeSys Giga 4P Contactor 150A

MPNLC1G1504BEEA
Active

Schneider Electric TeSys Giga LC1G1504BEEA, 4-pole contactor, AC-3 150 A, 24…48 V AC/DC coil.

StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1G1504BEEA key specifications
ParameterValue
Range of productTeSys Giga
Product or component typeContactor
Coil voltage24...48 V AC 50/60 Hz 24...48 V DC
Voltage1000 V
Control circuit voltage limitsOperational: 0.8 Uc Min...1.1 Uc Max (at Drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
[Ue] rated operational voltage<= 460 V DC
[Uimp] rated impulse withstand voltage8 kV
[Icw] rated short-time withstand current1.2 kA - 10 s 0.7 kA - 30 s 0.6 kA - 1 min 0.45 kA - 3 min 0.35 kA - 10 min
Breaking capacity1280 A at 440 V
[Ie] rated operational current150 A (at 275 A (at <40 °C) at <= 1000 V AC-1
[Ith] conventional free air thermal current275 A (at 40 °C)
Inrush power in220 W

All specifications

LC1G1504BEEA additional specifications
ParameterValue
Power dissipation per pole10 W AC-1 - Ith 275 A 5 W AC-3 - Ith 150 A
Inrush power in VA (50/60 hz, AC)290 VA
Hold-in power consumption in5.7 W
Poles description4P
Pole contact composition4 NO
Utilisation categoryAC-3 AC-3e AC-1 AC-5a AC-5b AC-6a AC-6b DC-1 DC-3 DC-5
IP degree of protectionIP2X front face with shrouds conforming to IEC 60529 IP2X front face with shrouds conforming to VDE 0106
Mounting supportPlate
Connection pitch35 mm
Connections - terminalsPower circuit: bar 2 - busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 185 mm² Power circuit: bolted connection Control circuit: push-in 1 0.2...2.5 mm² - cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.25...2.5 mm² - cable stiffness: flexible with cable end Control circuit: push-in 2 0.5...1.0 mm² with cable end Control circuit: push-in 0.75...2.5 mm² - cable stiffness: solid stranded without cable end Control circuit: push-in 0.75...2.5 mm² - cable stiffness: flexible with cable end
Depth193 mm
Width143 mm
ColorDark grey
Height255 mm
Product weight5.1 kg
Mechanical durability8 Mcycles
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 UL 60335-1 UL 60335-2-40:Annex JJ
RangeTeSys
Operating time40...70 ms closing 15...50 ms opening
Coil technologyBuilt-in bidirectional peak limiting
Average impedance0.00018 Ohm
Device short nameLC1G
Tightening torque18 N.m
Compatibility codeLC1G
Overvoltage categoryIII
Protective treatmentTH
Contactor applicationPower switching
Mechanical robustnessVibrations 5...300 Hz 2 gn contactor open Vibrations 5...300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed
Associated fuse rating160 A aM at 160 A aM at 315 A gG at 300 A UL Type J at <= 600 V
Maximum operating rate600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1
Safety reliability levelB10d = 400000 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Irms rated making capacity1560 A at 440 V
Auxiliary contact composition1 NO + 1 NC
Ambient air temperature for storage-60...80 °C
Ambient air temperature for operation-25...60 °C
Permissible ambient air temperature around the device-40...70 °C at Uc

Product details

The LC1G1504BEEA: Mechanical durability is rated at 8 million cycles — that's well beyond the B10d 400,000-cycle figure for the safety channel at nominal load. If you're running high-speed cycling at 600 ops/h AC-3, the mechanical life should outlast the electrical wear for most applications. Terminal acceptance: power circuit uses bolted connection for busbars up to 25×6 mm or lugs up to 185 mm². Mounting is plate only, with a 35 mm connection pitch, so expect to drill a backplate rather than clip onto DIN rail.

Tightening torque for power connections is 18 N·m — that's a torque wrench spec you want to put on your install checklist.
