Schneider Electric LC1K06106M7 — Contactors

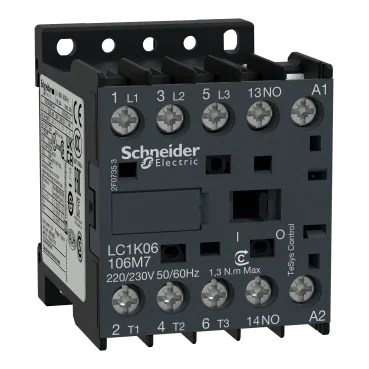

Schneider Electric LC1K06106M7 TeSys K Contactor, 6A AC-3, 2

MPNLC1K06106M7
Active

Schneider Electric TeSys K contactor, LC1K06106M7, 3-pole, 6 A AC-3/AC-3e at 440 V, 220…230 V AC standard coil, 1 NO auxiliary contact.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

LC1K06106M7 — Identification
ParameterValue
Product / component typeContactor
Series / rangeTeSys
ApplicationMotor control
LC1K06106M7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: Signalling circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-3 AC-3e AC-4
LC1K06106M7 — Contacts & Poles
ParameterValue
Pole configuration3P
LC1K06106M7 — Environmental
ParameterValue
IP degree of protectionIP2X conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessShocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LC1K06106M7 — Approvals
ParameterValue
StandardsEN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
LC1K06106M7 — Mechanical
ParameterValue
Width45 mm
Height58 mm
Depth57 mm

Product details

The Schneider Electric LC1K06106M7 is a TeSys K 3-pole contactor rated 6 A in AC-3 / AC-3e duty at 440 V, with a 220…230 V AC standard coil and one normally-open auxiliary contact. It is designed for motor control in control panels, switching inductive loads up to that current.

Electrical durability is 1.3 million cycles at that AC-3 rating, so it holds up for a long production run. The coil holds in at 0.8 to 1.15 times nominal voltage and drops out at 0.2 times nominal, giving a clean margin for brownout conditions. The contactor carries a B10d of 1.37 million cycles under nominal load per EN/ISO 13849-1, which is relevant if you are integrating it into a safety-related control system. The 57 mm depth and 45 mm width fit standard DIN-rail enclosures.

The LC1K06106M7 is certified to EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and JIS C8201-4-1, covering the major industrial markets globally. It also meets IEC 60335-1 Clause 30.2 and IEC 60335-2-40 Annex JJ for appliance and HVAC applications, and carries V1 flame retardance per UL 94.

Frequently asked questions

What are the key standards this contactor meets?

It is certified to EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and JIS C8201-4-1, plus IEC 60335-1 and IEC 60335-2-40 for appliance use.

What is the coil voltage and tolerance?

The coil is rated 220…230 V AC. Operational range is 0.8 to 1.15 times nominal; dropout occurs at 0.2 times nominal below 50 °C.
