Schneider Electric LC1K090083P7 — Contactors

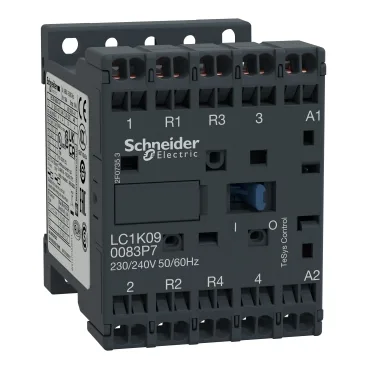

Schneider Electric LC1K090083P7 TeSys Contactor, 20 A AC-1,

MPNLC1K090083P7
Active

Schneider Electric TeSys LC1K090083P7, 4-pole contactor, 20 A AC-1 rated operational current, 230 V AC 50/60 Hz coil, spring terminals, plate/rail mount.

Schneider Electric LC1K090083P7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

LC1K090083P7 — Identification
ParameterValue
Product / component typeContactor
Series / rangeTeSys
ApplicationResistive load
LC1K090083P7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: Signalling circuit: <= 690 V AC <= 400 Hz
Utilisation categoryAC-1
LC1K090083P7 — Contacts & Poles
ParameterValue
Pole configuration4P
LC1K090083P7 — Environmental
ParameterValue
IP degree of protectionIP2X conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessShocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LC1K090083P7 — Approvals
ParameterValue
StandardsEN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
LC1K090083P7 — Mechanical
ParameterValue
Width45 mm
Height58 mm
Depth57 mm

Product details

The Schneider Electric LC1K090083P7 is a TeSys-series 4-pole contactor built for switching resistive loads. It carries a 20 A rated operational current in AC-1 utilisation category at up to 690 V AC, with a 230 V AC 50/60 Hz coil. The contact arrangement is 2 NO + 2 NC, and the terminals are spring-cage type accepting 0.75…1.5 mm² solid or flexible wire.

The 230 V AC coil is standard for European control circuits; the coil pulls 30 VA inrush at 20 °C and dissipates 1.3 W holding. The 2 NO + 2 NC main poles give you flexibility for switching both phases or using one set as an auxiliary interlock. Spring terminals save panel-builder time — no screw torque to verify, just strip 8 mm and push in.

The IP2X finger protection (VDE 0106) means it's safe for open-panel mounting where accidental contact is possible.

Frequently asked questions

What compliance documentation does this contactor carry?

It is certified to EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, and JIS C8201-4-1. It also meets IEC 60335-1 Clause 30.2 and IEC 60335-2-40 Annex JJ for glow-wire, with V1 flame retardance per UL 94.

What is the closest pin-compatible alternative in the TeSys family?

Within the TeSys LC1K range, the closest alternative would be a contactor with the same 4-pole arrangement and coil voltage, but with a different current rating — for example, the LC1K090083P7 is a 20 A AC-1 part; a sibling like LC1K120083P7 would offer a higher 25 A AC-1 rating in the same physical footprint and terminal style. The deciding factor is your load current.
