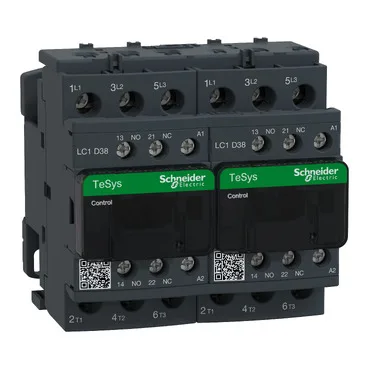

Schneider Electric LC2D38E7 — Contactors

Schneider LC2D38E7 TeSys D reversing contactor, 38 A, 48 V AC coil (obsolete)

MPNLC2D38E7
Obsolete

Schneider Electric TeSys D LC2D38E7 reversing contactor, 3-pole (3 NO), 38 A AC-3 at ≤440 V, 48 V AC coil, preassembled with reversing power busbar, IP20, IEC, obsolete.

$164.45Ref. price · indicative, final on quote
Schneider Electric LC2D38E7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

LC2D38E7 — Identification
ParameterValue
Product / component typeReversing contactor
Series / rangeTeSys TeSys Deca
ApplicationResistive load Motor control
LC2D38E7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: Power circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-3 AC-1 AC-3e
LC2D38E7 — Contacts & Poles
ParameterValue
Pole configuration3P
LC2D38E7 — Environmental
ParameterValue
IP degree of protectionIP20 front face conforming to IEC 60529
Operating altitude0...3000 m
Mechanical robustnessVibrations contactor open: 2 Gn, 5...300 Hz Vibrations contactor closed: 4 Gn, 5...300 Hz Shocks contactor closed: 15 Gn for 11 ms Shocks contactor open: 8 Gn for 11 ms
Protective treatment / pollution degreeTH conforming to IEC 60068-2-30
Fire resistance850 °C conforming to IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
LC2D38E7 — Mechanical
ParameterValue
Width90 mm
Height85 mm
Depth92 mm

Product details

Overview

The LC2D38E7 is a Schneider TeSys D reversing contactor rated 38 A in AC-3 duty at ≤440 V, with a 48 V AC coil and three normally-open power poles, delivered preassembled with its reversing power busbar.

An RFQ confirms available quantity and lead time for line-down or last-time-buy needs.

The LC2D38E7 carries a 38 A rating versus the 50 A of the LC1D50A6N7, a same-frame TeSys Deca contactor. A panel originally wired for the LC1D50A6N7 would need a current-capacity check before substituting the LC2D38E7.

MPN
LC2D38E7
