Schneider Electric LC2K06107P7 — Contactors

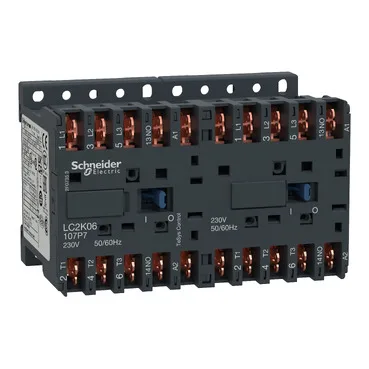

Schneider TeSys K LC2K06107P7 Reversing Contactor, 6A AC-3,

MPNLC2K06107P7
Obsolete

Schneider Electric TeSys K reversing contactor, LC2K06107P7, 3P, AC-3 440V 6A, 1NO, 230V AC coil, faston connectors.

Schneider Electric LC2K06107P7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LC2K06107P7 — Identification
ParameterValue
Product / component typeReversing contactor
Series / rangeTeSys
ApplicationMotor control
LC2K06107P7 — Ratings & Performance
ParameterValue
Rated operational voltage (Ue)Power circuit: 690 V AC 50/60 Hz Signalling circuit: 10 MOhm for signalling circuit
Utilisation categoryAC-4 AC-3
LC2K06107P7 — Contacts & Poles
ParameterValue
Pole configuration3P
LC2K06107P7 — Environmental
ParameterValue
IP degree of protectionIP20 conforming to VDE 0106
Operating altitude2000 m without derating
Mechanical robustnessShocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Protective treatment / pollution degreeTC conforming to IEC 60068 TC conforming to DIN 50016
Flame retardanceV1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
LC2K06107P7 — Mechanical
ParameterValue
Width90 mm
Height58 mm
Depth57 mm

Product details

It switches motor loads in AC-3 and AC-4 duty, rated 6 A at 440 V AC for AC-3, with a 230 V AC coil and faston connectors. The 3-pole main contacts are 3 NO, and an integrated 1NO auxiliary contact provides status feedback.

IP20 finger-safe terminals suit enclosed panel mounting. The 57 mm depth, 90 mm width, and 58 mm height fit standard DIN-rail enclosures. Flame retardance meets UL 94 V1 and NF F 16-101/102 for rail and industrial environments.

This part is classified obsolete by Schneider Electric. No official successor order code is listed. For a BOM line or a line-down replacement, the part is sourced through independent channels on a quoted-to-order basis against an RFQ — confirm fit with the cited ratings before committing.

Frequently asked questions

What are the key ratings for the LC2K06107P7?

AC-3 rated 6 A at 440 V AC, 3-pole reversing contactor with a 230 V AC coil, 1NO auxiliary contact, IP20 protection, and faston terminals. Operational voltage up to 690 V AC 50/60 Hz.

What is the depth of the LC2K06107P7?

The depth is 57 mm, with a width of 90 mm and height of 58 mm.

What compliance documentation does this part have?

Flame retardance is V1 conforming to UL 94, and it also meets NF F 16-101 and NF F 16-102. Protective treatment conforms to IEC 60068 and DIN 50016. IP20 per VDE 0106.
