Overview

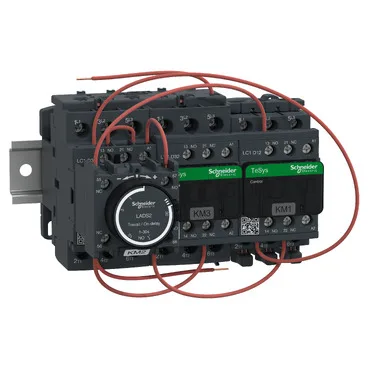

The LC3D320AP7 is a Schneider TeSys Deca star delta starter rated 32 A with 3 poles and a 3 x 3 NO contact configuration, energized by a 230 V AC coil and terminated via screw clamp terminals. It is sealed to IP20 and carries a V1 flammability rating per UL 94, suited for enclosed motor control panels.
Sizing and selection
At 32 A, the LC3D320AP7 sits above the 18 A LC3D18AN7 in the same TeSys Deca star delta family; the 32 A frame handles larger motor loads without stepping up to the 80 A LC3D80P7, which also uses a different coil voltage range.
Schneider lists the LC3D320AP7 as active production; it is a current catalog item for new builds and replacement spares, available through standard distribution channels.
