Motor power capability varies with line voltage: 22 kW at 220–230 V, 37 kW at 380–400 V, 45 kW at 415 V, 45 kW at 440 V, 45 kW at 660–690 V, and 55 kW at 500 V — all at 50/60 Hz. That spread covers most European and North American industrial supplies, though the 55 kW peak at 500 V is the highest rating on this frame.

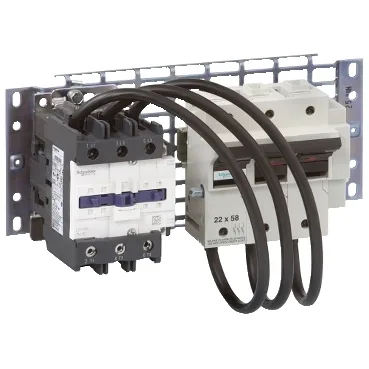

The LC4D80M7 mounts on a plate — not a DIN rail — so panel layout needs to account for the 311 mm width, 143 mm height, and 140 mm depth. That footprint is larger than a typical contactor-only block; the integrated fuse-disconnector adds length. Plan gland-plate entry and busbar routing accordingly, especially if retrofitting into an existing enclosure where space is tight.
