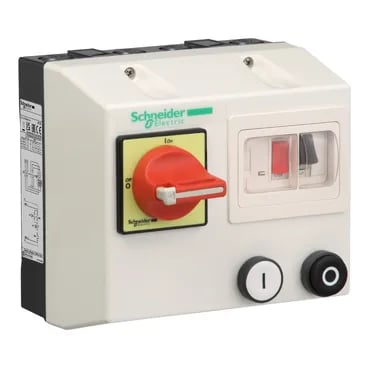

The Schneider Electric TeSys LG1K065V703 is an enclosed direct-on-line starter rated for small motor loads in safety applications. It packs a contactor, switch disconnector, and circuit-breaker into a single IP55 polycarbonate box rated IK07 for impact resistance — built for environments where dust and casual bumps are the norm, not the exception.
The thermal protection adjustment range of 0.25-0.4 A sets the motor full-load current window. That's sized for fractional-horsepower motors — think small pumps, fans, or conveyors on a 0.06 kW (220/230 V AC) to 0.12 kW (440 V AC) load. The AC-3 utilisation category confirms it's rated for starting squirrel-cage motors under full load, not just resistive heating. The 400 V AC control coil means this unit is line-powered from the motor supply — no separate control transformer needed, but verify your incoming supply matches. The push-button start/stop and rotary E-stop are integrated, so the safety circuit is self-contained within the enclosure, simplifying wiring to a single motor cable and incoming supply.
