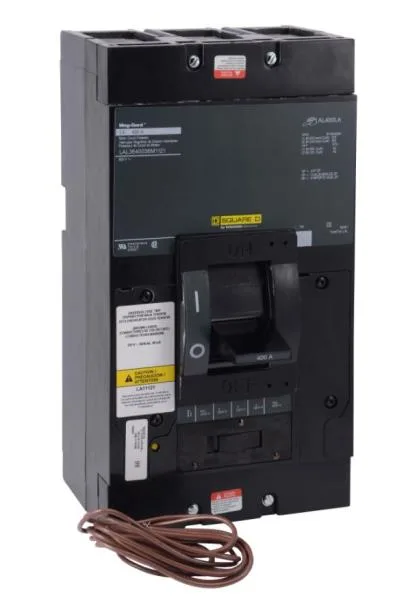

Schneider LHF36000MV Molded Case Switch
MPNLHF36000MV
Square D LHF36000MV Automatic Molded Case Switch 600V 400A|SQUARE D LHF36000MV: AUTOMATIC MOLDED CASE SWITCH 600V 400A
$4,560.00 – $7,577.24Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Type | MAGNETIC |
| Frame type | L |
| Terminal type | NOT INCLUDED |
| Voltage rating | 240 VAC, 480 VAC STAR/277 VAC, 480 VAC, 600 VAC STAR/347 VAC, 600 VAC AT 50/60 HZ (UL/CSA/NOM); 415 VAC AT 50/60 HZ (IEC); 250 VDC |
| Maximum AC voltage rating | 600 V |
| Maximum DC voltage rating | 250 V |
| Current rating | 400 AMPERE |
| Poles | 3 |
| Approval | UL, CSA, CE |
| Dimensions | 6 INCH W X 5.84 INCH D X 11 INCH H |
| Model | LH |
| Category | 3 Pole Bolt-On Molded Case Switches |
All specifications+7 ▾
| Parameter | Value |
|---|---|
| Manufacturer | Square D Co. |
| Sub-Category | Motor Circuit Protector |
| Trip setting | 8000 AMPERE (AC), 9600 AMPERE (DC) |
| Manufacturer brand | Square D Co. |
| Product description | Square D LHF36000MV Automatic Molded Case Switch 600V 400A |
| Additional information | WITH VISI-BLADE |
| Full technical description | Magnetic Type; 6 Inch W X 5.84 Inch D X 11 Inch H Size; 600 V Max. AC Voltage Rating; 250 V Max. DC Voltage Rating; UL, CSA, CE Approval; 240 VAC, 480 VAC Star/277 VAC, 480 VAC, 600 VAC Star/347 VAC, 600 VAC at 50/60 Hz (Ul/Csa/Nom); 415 VAC at 50/60 Hz (IEC); 250 VDC Voltage Rating; 400 Ampere Current Rating; 3 Pole(S); Not Included Terminal Type; L Frame Type; 8000 Ampere (AC), 9600 Ampere (DC) Trip Setting; With Visi-Blade; LH Model |
MPN
LHF36000MV
