Schneider Electric LP1 D1210BD — Contactors 32-95A

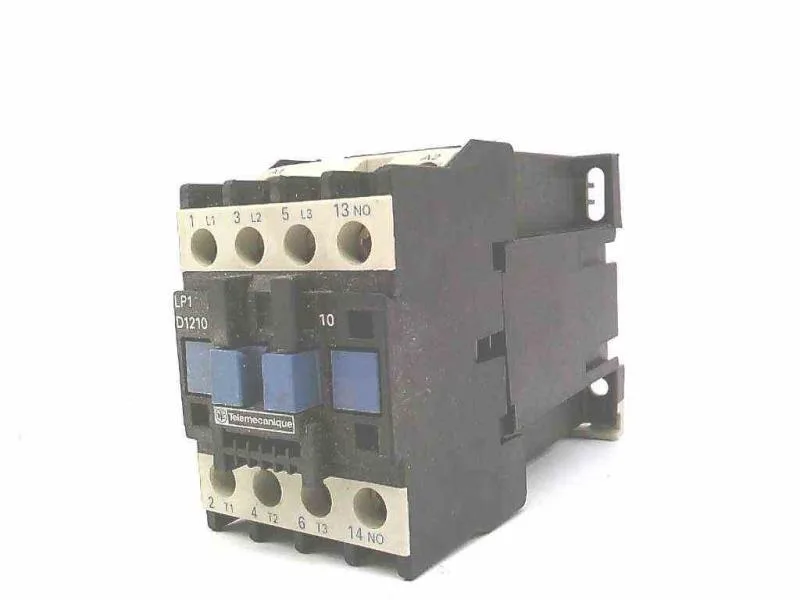

Telemecanique LP1 D1210BD Contactor, 3 Poles, 24 VDC Coil, 5

MPNLP1 D1210BD

Telemecanique LP1 D1210BD, 3-pole contactor, 24 VDC coil, 1 N/O auxiliary contact, 50 A thermal current, 5.5 kW at 400 V AC.

$55.55Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LP1 D1210BD — Contacts & Coil
ParameterValue
Number of poles3
Coil voltage24
Contact configuration1 Normally Open
Contact configuration1 Normally Open
LP1 D1210BD — Ratings
ParameterValue
Switching current50
Supply voltageDC
Rated insulation voltage (Ui)1000
Dielectric withstand voltage8000 V
LP1 D1210BD — Mechanical
ParameterValue
Terminal tightening torque7 lb-in
LP1 D1210BD — Other specifications
ParameterValue
Art_no023372
Power5.5
Product typeContactor
Power consumption5500

Product details

The Telemecanique LP1 D1210BD is a 3-pole contactor with a 24 VDC coil, rated for a thermal current (Ith) of 50 A and a motor-switching capacity of 5.5 kW at 400 V AC three-phase. The 24 VDC coil is the key fit constraint — verify your control voltage matches before wiring, as a 24 VAC supply won't hold it in.

Impulse withstand voltage is 8 kV (rated at 8 kV per), with an insulation voltage of 1000 V — this gives the contactor headroom for 400 V line-to-line switching in industrial panels without creepage concerns. The single N/O auxiliary contact is built into the front; if your circuit needs a second N/O or an N/C feedback to the PLC, you'll add a side-mount auxiliary block from the TeSys D range.

Frequently asked questions

How do I get current pricing and availability for LP1 D1210BD?

Submit an RFQ through this listing. Availability and current pricing are confirmed at quote time; this part is sourced through independent distribution channels.

What is LP1 D1210BD's listed poles (3) on this component line?

It is a 3-pole contactor, meaning it switches three phases simultaneously — standard for three-phase motor loads up to 5.5 kW at 400 V.

What is LP1 D1210BD's listed art_no (023372) on this component line?

The manufacturer's article number is 023372. This is the factory order code used for traceability and cross-referencing with Telemecanique documentation.

Will LP1 D1210BD drop into a panel that was specified around LP1-D1210-BD without rewiring?

Yes — LP1 D1210BD and LP1-D1210-BD are the same product (the hyphen is a formatting variant). The spec sheet, footprint, and wiring are identical.
