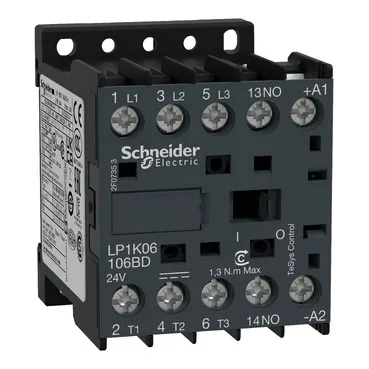

Schneider Electric TeSys K contactor, LP1K06106BD, 3P, AC-3/AC-3e 440V 6A, 1NO aux, 24V DC coil, 57 mm depth.
| Parameter | Value |
|---|---|
| Product / component type | Contactor |
| Series / range | TeSys |
| Application | Motor control |
| Parameter | Value |
|---|---|
| Utilisation category | AC-3 AC-4 AC-3e |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| Operating altitude | 2000 m without derating |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 58 mm |
| Depth | 57 mm |
| Parameter | Value |
|---|---|
| Range of product | TeSys K |
| Device short name | LP1K |
| Pole contact composition | 3 NO |
| [Ie] rated operational current | 6 A at 6 A at 10 MOhm for signalling circuit |
| Ambient air temperature for storage | -50...80 °C |
It switches 6 A in AC-3 duty at 440 V, with a 24 V DC coil and one normally open auxiliary contact.
This part is classified as Obsolete by the manufacturer. There is no official successor order code.
The contactor measures 45 mm wide by 58 mm high by 57 mm deep — a compact footprint that fits standard DIN-rail enclosures without crowding adjacent devices. The 24 V DC coil draws roughly 6 VA inrush and 4.5 VA hold; verify the PLC or relay output driving it can sink the coil current.
No official successor order code is listed. A current-production TeSys K contactor with the same 3-pole, 6 A AC-3, 24 V DC coil specification is the closest functional match, but the auxiliary contact configuration (1 NO on this part) must be verified against the replacement variant.
It is a 3-pole contactor rated 6 A in AC-3 and AC-3e utilization categories at 440 V, with a 24 V DC coil and one normally open auxiliary contact. Dimensions are 45 mm wide, 58 mm high, 57 mm deep.
Since it is obsolete, sourcing is through surplus inventory and independent distributors. Submit an RFQ for current availability and pricing — no stock or lead time is carried on this listing.
