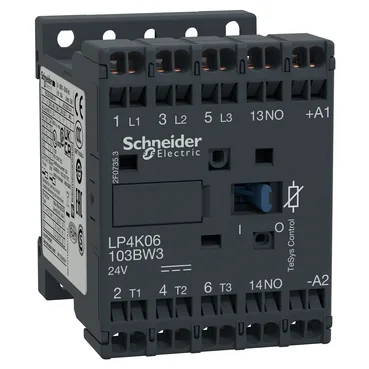

The LP4K06103BW3 is a Schneider Electric TeSys K three-pole contactor rated for motor control in AC-3 and AC-3e duty at 6 A up to 440 V. The 24 V DC coil draws 1.8 W holding power and includes an integral suppression diode — no external snubber needed on the control side. The spring terminals accept 0.75 to 1.5 mm² solid or flexible wire, two per clamp, which speeds panel wiring on DIN-rail or plate mounts.
Schneider LP4K06103BW3 TeSys K Contactor, 6A, 24V DC, Obsole
MPNLP4K06103BW3
Obsolete
Schneider Electric TeSys K contactor, 3P, AC-3/AC-3e 6A at 440V, 24V DC low-consumption coil, 1NO auxiliary contact, spring terminals.
$60.43Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Contactor |
| Series / range | TeSys |
| Application | Motor control |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit: Signalling circuit: 10 MOhm for signalling circuit |
| Utilisation category | AC-3 AC-3e AC-4 |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP2X |
| Operating altitude | 2000 m without derating |
| Flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 |
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 58 mm |
| Depth | 57 mm |
Product details
Frequently asked questions
What is the depth of the LP4K06103BW3?
57 mm. Width is 45 mm, height is 58 mm — a compact footprint for DIN-rail or plate mounting.
