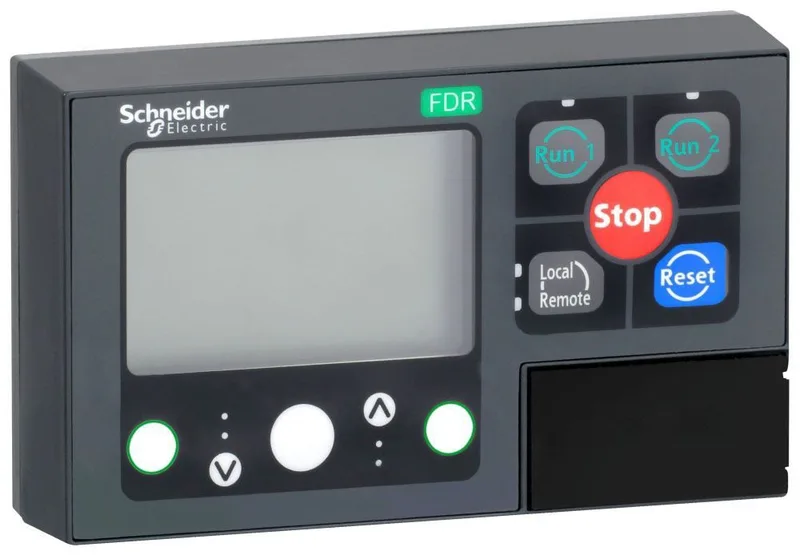

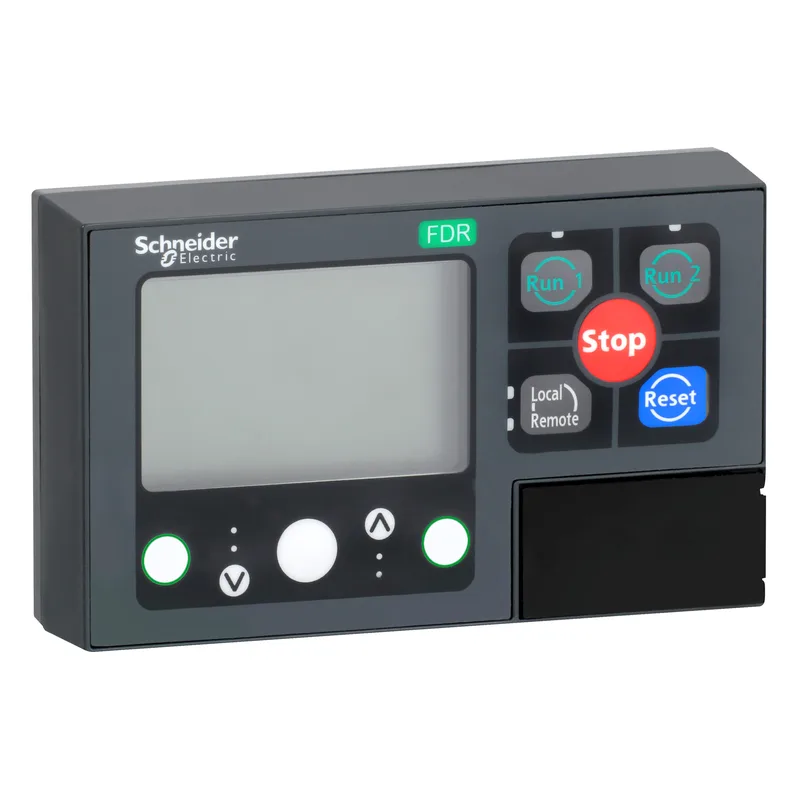

Schneider LTMCUF TeSys T Display Module
MPNLTMCUF
Active
TESYS T DISPLAY MODULE WITH MEMORY|TESYS T DISPLAY MODULE WITH MEMORY
$303.00 – $478.79Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Display type | Backlit LCD |
| Product or component type | Operator control unit |
| Maximum supply current | 140 mA |
| Power dissipation | 1 W |
| IP degree of protection | IP54 EN/IEC 60947-4-1 front) IP20 EN/IEC 60947-4-1 rear) |
| Mounting mode | Flush-mounted |
| Device connection | Connection to a LTM R controller, RJ45 rear Connection to a PC, RJ45 front |
| Relative humidity | 15...95 % |
| Depth | 2.0 in (50 mm) |
| Width | 4.6 in (117 mm) |
| Height | 2.8 in (70 mm) |
| Product weight | 0.9 lb(US) (0.4 kg) |
All specifications
| Parameter | Value |
|---|---|
| Standards | UL 60947-4-1A EN/IEC 61131-2 CSA C22.2 No 60947-4-1 |
| Range | TeSys |
| Supply | Via the controller |
| Category | US10I1222338 |
| Local control | 10 push-button |
| Fire resistance | 1202 °F (650 °C) EN/IEC 60947-1 |
| Flame retardance | V2 conforming to UL 94 |
| Local signalling | 4 LEDs |
| Device short name | LTMCUF |
| Function available | FDR (fast device replacement) |
| Protective treatment | TC 12 humidity cycles 55 °C EN/IEC 60068-2-30 |
| Mechanical robustness | Shocks15 Gn for 11 ms EN/IEC 60068-2-27 Vibrations4 Gn, 5...300 Hz EN/IEC 60068-2-6 |
| Electromagnetic compatibility | Electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2 Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 Conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6 Surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5 Fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4 |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
MPN
LTMCUF
