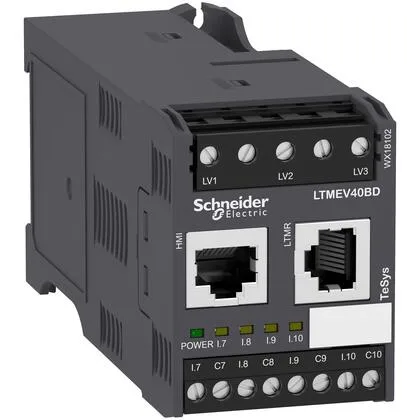

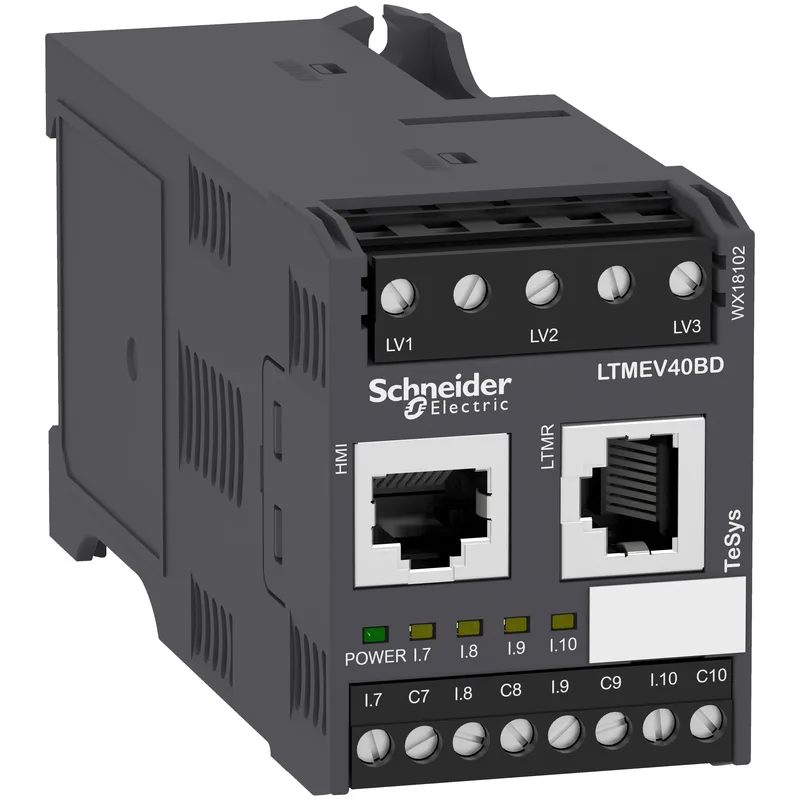

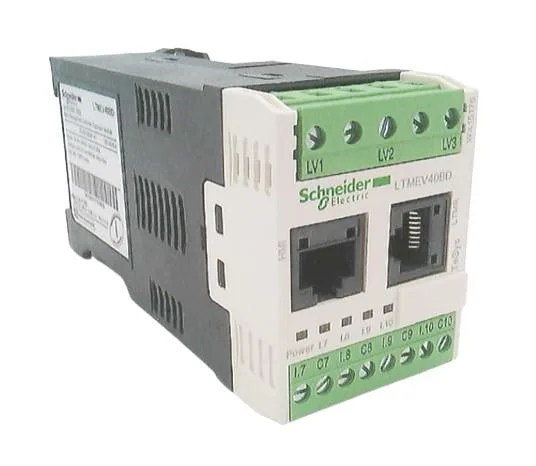

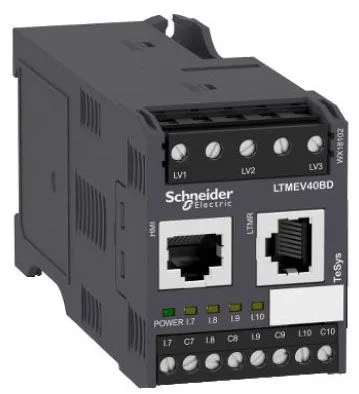

Schneider LTMEV40BD TeSys T Extension Module
MPNLTMEV40BD
Active
Extension module, TeSys T, 4 inputs, 24VDC, for LTMR controller|Extension module, TeSys T, 4 inputs, 24VDC, for LTMR controller
$128.27 – $306.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Metering type | Voltage U21, U32, U13, V1, V2, V3 Imbalance voltage Frequency Calculated active and reactive energy (+/- W.h, +/- VAR.h) Reactive power Q, Q1, Q2, Q3 Power factor Active power P, P1, P2, P3 |
| Product or component type | Extension module |
| Contacts type and composition | Without |
| Voltage | 690 V EN/IEC 60947-1 690 V CSA C22.2 No 14 690 V UL 508 |
| [Uimp] rated impulse withstand voltage | 6 kV current or voltage measurement circuit EN/IEC 60947-4-1 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1 |
| Input current | 7 mA |
| Current state 0 guaranteed | Logic input < 5 V <= 15 mA 5 ms |
| Current state 1 guaranteed | Logic input < 15 V 2...15 mA 15 ms |
| Maximum output switching frequency | 2 Hz |
| IP degree of protection | IP20 |
| Connection pitch | 0.20 in (5.08 mm) |
| Connections - terminals | Control circuit connector 1 0.0004...0.004 in² (0.25...2.5 mm²) AWG 24...AWG 14)flexible with cable end Control circuit connector 1 0.0003...0.004 in² (0.2...2.5 mm²) AWG 24...AWG 14)flexible without cable end Control circuit connector 1 0.0004...0.004 in² (0.25...2.5 mm²) AWG 24...AWG 14)flexible without cable end Control circuit connector 1 0.0003...0.004 in² (0.2...2.5 mm²) AWG 24...AWG 14)solid without cable end Control circuit connector 2 0.0003...0.002 in² (0.2...1 mm²) AWG 24...AWG 14)flexible with cable end Control circuit connector 2 0.0003...0.002 in² (0.2...1.5 mm²) AWG 24...AWG 14)flexible without cable end Control circuit connector 2 0.0008...0.002 in² (0.5...1.5 mm²) AWG 24...AWG 14)flexible without cable end Control circuit connector 2 0.0003...0.002 in² (0.2...1 mm²) AWG 24...AWG 14)solid without cable end |
All specifications
| Parameter | Value |
|---|---|
| Pollution degree | 3 |
| Operating altitude | <= 6561.68 ft (2000 m) without derating |
| Depth | 4.8 in (120.7 mm) |
| Width | 1.8 in (45 mm) |
| Height | 2.4 in (61 mm) |
| Product weight | 0.46 lb(US) (0.21 kg) |
| Standards | IEC 60947-4-1 UL 508 EN 60947-4-1 IACS E10 CSA C22.2 No 14 |
| Range | TeSys |
| Supply | Via the controller |
| Category | US10I1222338 |
| Fire resistance | 1202 °F (650 °C) EN/IEC 60695-2-12 1760 °F (960 °C) UL 94 |
| Device short name | LTME |
| Tightening torque | Control circuit: 4.4...5.3 lbf.in (0.5...0.6 N.m) flat screwdriver 0.1 in (3 mm) |
| Compatibility code | LTME |
| Device application | Equipment monitoring and control |
| Logic input number | 4 |
| Measurement accuracy | 1 % voltage 100...830 V) 3 % power factor 5 % active and reactive power |
| Overvoltage category | III |
| Protective treatment | 12 x 24 hour cycles EN/IEC 60068-2-30 48 h EN/IEC 60070-2-11 TH EN/IEC 60068 |
| Mechanical robustness | Shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27 Vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6 Vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6 |
| Maximum operating rate | 1800 cyc/h |
| Electromagnetic compatibility | Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 Control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 Voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 Voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
MPN
LTMEV40BD
