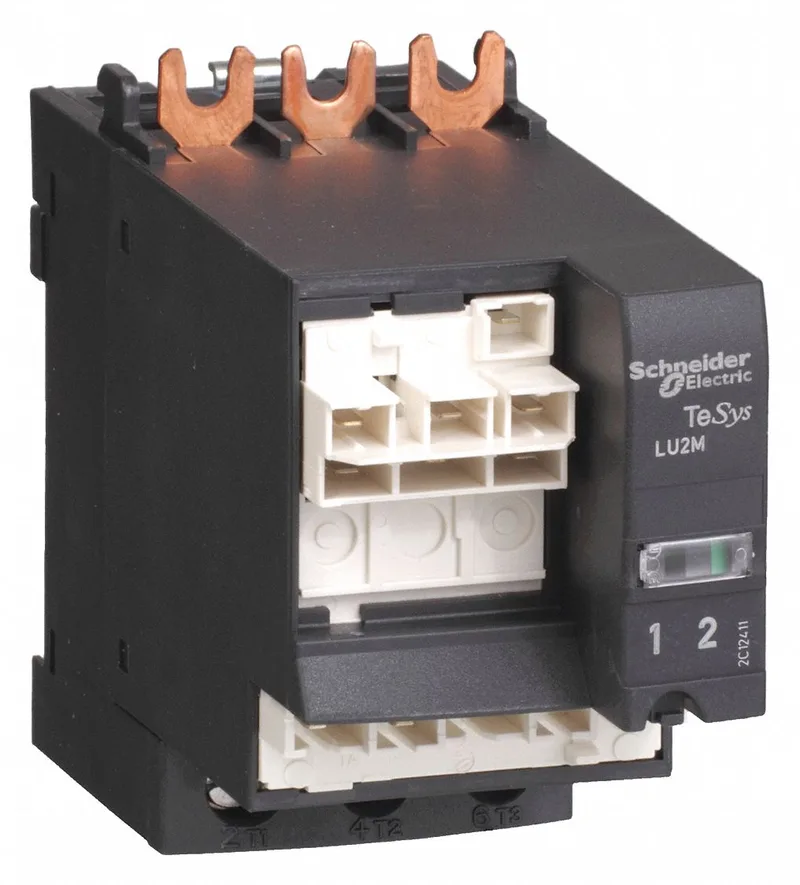

Schneider Electric LU2MB0BL
MPNLU2MB0BL
Active
Reverser block for vertical mounting, TeSys Ultra, 38A/690V, coil 24VDC|Reverser block for vertical mounting, TeSys Ultra, 38A/690V, coil 24VDC
$45.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Reverser block |
| Coil voltage | 24 V DC |
| Voltage | 690 V IEC 60947-6-2 600 V UL 60947-4-1 600 V CSA C22.2 No 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC power circuit |
| [Uimp] rated impulse withstand voltage | 6 kVIEC 60947-6-2 |
| Current consumption | 120 mA 24 V DC I maximum while closing 120 mA 24 V DC I rms sealed |
| [Ie] rated operational current | 38 A |
| Network frequency | 40...60 Hz |
| IP degree of protection | IP20 IEC 60947-1 front panel and wired terminals) IP20 IEC 60947-1 other faces) IP40 IEC 60947-1 front panel outside connection zone) |
| Device mounting | Direct mounting |
| Connections - terminals | Control circuit screw clamp terminals 1 0.0005...0.002 in² (0.34...1.5 mm²) 0.1 in (3 mm)) flexible with cable end Control circuit screw clamp terminals 1 0.001...0.002 in² (0.75...1.5 mm²) 0.1 in (3 mm)) flexible without cable end Control circuit screw clamp terminals 1 0.001...0.002 in² (0.75...1.5 mm²) 0.1 in (3 mm)) rigid Control circuit screw clamp terminals 2 0.0005...0.002 in² (0.34...1.5 mm²) 0.1 in (3 mm)) flexible with cable end Control circuit screw clamp terminals 2 0.001...0.002 in² (0.75...1.5 mm²) 0.1 in (3 mm)) flexible without cable end Control circuit screw clamp terminals 2 0.001...0.002 in² (0.75...1.5 mm²) 0.1 in (3 mm)) rigid Power circuit screw clamp terminals 1 0.002...0.02 in² (1...10 mm²) 0.2 in (4 mm)) rigid Power circuit screw clamp terminals 1 0.002...0.009 in² (1...6 mm²) 0.2 in (4 mm)) flexible with cable end Power circuit screw clamp terminals 1 0.004...0.02 in² (2.5...10 mm²) 0.2 in (4 mm)) flexible without cable end Power circuit screw clamp terminals 2 0.002...0.009 in² (1...6 mm²) 0.2 in (4 mm)) flexible with cable end Power circuit screw clamp terminals 2 0.002...0.009 in² (1...6 mm²) 0.2 in (4 mm)) rigid Power circuit screw clamp terminals 2 0.002...0.009 in² (1.5...6 mm²) 0.2 in (4 mm)) flexible without cable end |
| Shock resistance | 10 gn power poles open IEC 60068-2-27 15 gn power poles closed IEC 60068-2-27 |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 2 gn 5...300 Hz) power poles open IEC 60068-2-27 4 gn 5...300 Hz) power poles closed IEC 60068-2-27 |
| Depth | 4.1 in (105 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.1 in (80 mm) |
| Standards | EN 60947-6-2 IEC 60947-6-2 UL 60947-4-1, with phase barrier CSA C22.2 No 60947-4-1, with phase barrier |
| Range | TeSys |
| Category | US10I1122399 |
| Fixing mode | Plug-in |
| Operating time | 150 ms with change of direction 75 ms without change of direction |
| Fire resistance | 1760 °F (960 °C) parts supporting live components IEC 60695-2-12 1202 °F (650 °C) IEC 60695-2-12 |
| Device short name | LU2MB |
| Tightening torque | Control circuit: 7.08...10.6 lbf.in (0.8...1.2 N.m) flat screwdriver 0.2 in (5 mm) Control circuit: 7.08...10.6 lbf.in (0.8...1.2 N.m) Philips No 2 screwdriver 0.2 in (5 mm) Power circuit: 16.8...22.1 lbf.in (1.9...2.5 N.m) flat screwdriver 0.2 in (6 mm) Power circuit: 16.8...22.1 lbf.in (1.9...2.5 N.m) Philips No 2 screwdriver 0.2 in (6 mm) |
| Compatibility code | LU2MB |
| Device application | Motor control |
| Protective treatment | TH IEC 60068 |
| Inrush restraint duration | 25 ms AC 15 ms DC |
| Resistance to fast transients | 2 kV 3 serial link IEC 61000-4-4 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Resistance to radiated fields | 9.1 V/m (10 V/m) level 3 IEC 61000-4-3 |
| Immunity to radioelectric fields | 10 V IEC 61000-4-6 |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -13...140 °F (-25...60 °C) with LUCM -13...158 °F (-25...70 °C) with LUCA, LUCB, LUCC, LUCD |
| Resistance to electrostatic discharge | 8 kV level 3, in open air IEC 61000-4-2 8 kV level 4, on contact IEC 61000-4-2 |
MPN
LU2MB0BL
