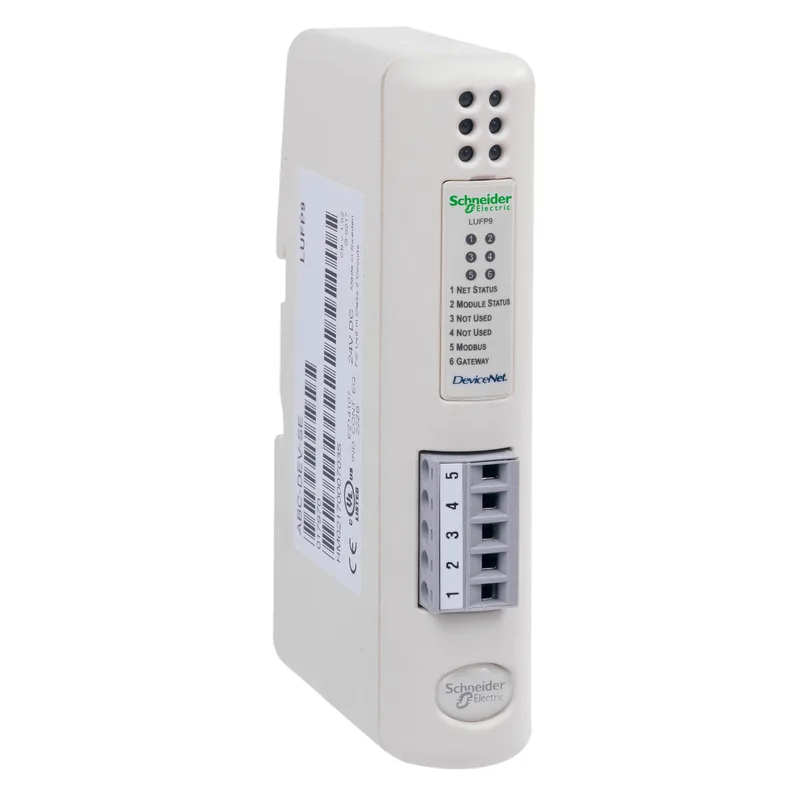

Schneider Electric LUFP9
MPNLUFP9
Active
Communication gateway, TeSys Ultra, 24VDC +/- 10%, 1 DeviceNet screw type, 1 RJ45 Modbus|Communication gateway, TeSys Ultra, 24VDC +/- 10%, 1 DeviceNet screw type, 1 RJ45 Modbus
$646.43 – $1,790.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protocol | DeviceNet Modbus |
| Connector type | 1 removable 5-way screw connector field bus RJ45 Modbus RJ45 to a PC |
| Product or component type | Communication gateway |
| Supply voltage | 24 V DC +/- 10 % |
| Current consumption | 100 mA typical 280 mA maximum |
| IP degree of protection | IP20 |
| Ambient air temperature for installation | 41...122 °F (5...50 °C) |
| Maximum number of connections | <= 8 Modbus slaves |
| Pollution degree | 2 IEC 60664 |
| Range | TeSys |
| Category | US10I1122398 |
| Services | Command DeviceNet 256 configurable words Configuration and adjustment Fipio by gateway mini messaging facility Monitoring DeviceNet 256 configurable words |
| Local signalling | LED front panel |
| Device short name | LUF |
| Electromagnetic compatibility | Electromagnetic emission IEC 50081-2 Electromagnetic immunity IEC 61000-6-2 |
MPN
LUFP9
