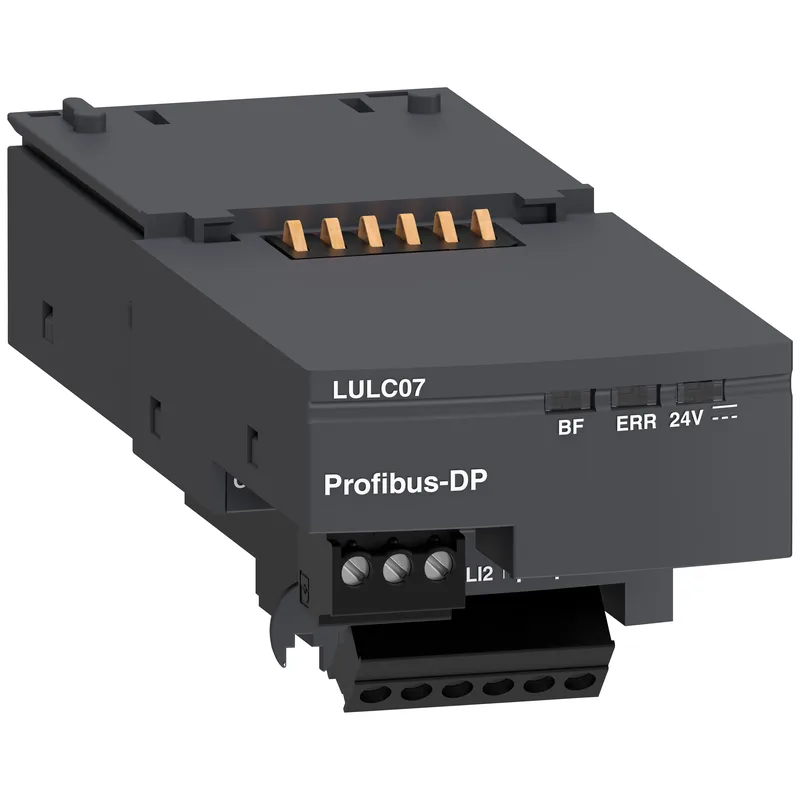

Schneider Electric LULC07
MPNLULC07
Obsolete
COMMUNCIATION MODULE PROFIBUS|COMMUNCIATION MODULE PROFIBUS
$191.09 – $213.36Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protocol | Profibus DP |
| Input type | Resistive |
| Protection type | GL fuse 2 A |
| Product or component type | Communication module |
| Supply voltage | 24 V DC |
| Output current | <= 500 mA |
| Current consumption | 1.5 mA 24 V DC 20...28 V |
| Switching current capacity | 0.5 mA 24 V |
| I/O channels | 2 dedicated to starter-controller coil operation 1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Physical interface | 9-way SUB-D male |
| Communication port protocol | Profibus DP |
All specifications
| Parameter | Value |
|---|---|
| Mounting mode | Plug-in |
| Mounting location | Front side |
| Response time | 10 ms +/- 30 % change to state 0 10 ms +/- 30 % change to state 1 |
| Standards | Profibus DP |
| Range | TeSys |
| Category | US10I1122398 |
| Addressing | 1...125 |
| Logic input | Positive 24 V DC - 7 mA |
| Local signalling | 3 LEDs front panel |
| Device short name | LUL |
| Device application | Communication |
| Main function available | Communication module |
| Ambient air temperature for operation | -13...131 °F (-25...55 °C) |
MPN
LULC07
