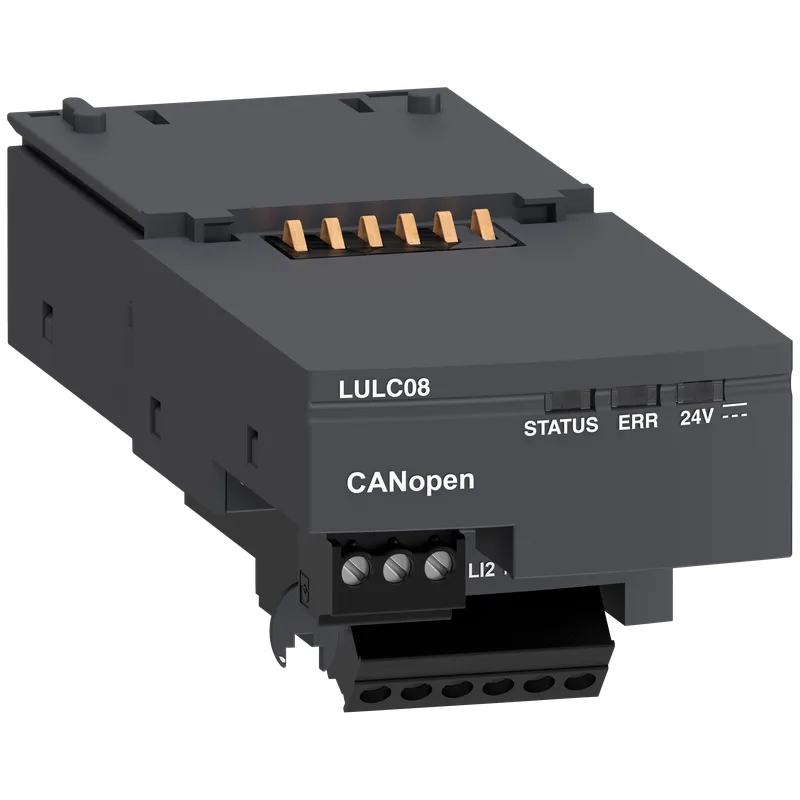

Schneider LULC08 CANopen Module
MPNLULC08
Active
CANopen communication module, TeSys Ultra, 24VDC supply|CANopen communication module, TeSys Ultra, 24VDC supply
$105.41 – $262.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protocol | CANopen |
| Input type | Resistive |
| Protection type | GL fuse 2 A |
| Associated cable type | AWG 26...AWG 16 |
| Product or component type | Communication module |
| Supply voltage | 24 V DC |
| Output current | <= 500 mA |
| Current consumption | 1.5 mA 24 V DC 20...28 V |
| Switching current capacity | 0.5 mA 24 V |
| I/O channels | 2 dedicated to starter-controller coil operation 1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Physical interface | 9-way SUB-D female |
All specifications
| Parameter | Value |
|---|---|
| Communication port protocol | CAN2.0A CAN2.B |
| Mounting mode | Plug-in |
| Mounting location | Front side |
| Connection pitch | 0.15 in (3.81 mm) |
| Connections - terminals | screw clamp terminals 1 0.0002...0.002 in² (0.14...1 mm²)flexible without cable end screw clamp terminals 1 0.0002...0.002 in² (0.14...1 mm²)rigid without cable end screw clamp terminals 1 0.0004...0.0008 in² (0.25...0.5 mm²)flexible with cable end screw clamp terminals 1 0.0004...0.002 in² (0.25...1 mm²)flexible with cable end screw clamp terminals 2 0.0002...0.0008 in² (0.14...0.5 mm²)rigid without cable end screw clamp terminals 2 0.0002...0.001 in² (0.14...0.75 mm²)flexible without cable end screw clamp terminals 2 0.0004...0.0005 in² (0.25...0.34 mm²)flexible with cable end screw clamp terminals 2 0.0008 in² (0.5 mm²)flexible with cable end |
| Response time | 10 ms +/- 30 % change to state 0 10 ms +/- 30 % change to state 1 |
| Standards | DR 303-2 CIADS-301 V4.02 |
| Range | TeSys |
| Category | US10I1122398 |
| Addressing | 1...127 |
| Logic input | Positive 24 V DC - 7 mA |
| Local signalling | 3 LEDs front panel |
| Device short name | LUL |
| Tightening torque | 1.8...2.21 lbf.in (0.2...0.25 N.m)0.10 in (2.5 mm) |
| Device application | Communication |
| Main function available | Communication module |
| Ambient air temperature for operation | -13...131 °F (-25...55 °C) |
MPN
LULC08
