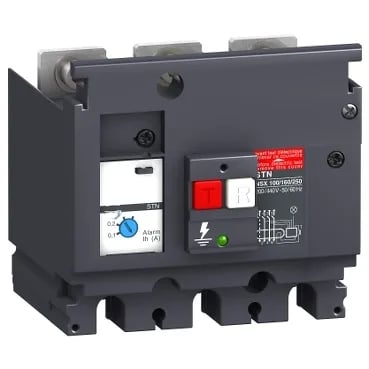

Schneider Electric LV429459
MPNLV429459
Obsolete
insulation monitoring module, ComPact NSX 100/160/250, 200 VAC to 440 VAC 50/60 Hz, 0.1 A to 1 A, 3 poles
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Insulation monitoring device |
| Device application | Insulation |
| Parameter | Value |
|---|---|
| Poles description | 3P |
| Parameter | Value |
|---|---|
| [Ue] rated operational voltage | 200...440 V |
| Parameter | Value |
|---|---|
| Network type | AC |
| Network frequency | 50/60 Hz |
| Measurement accuracy | -50 %...0 % |
| IK degree of protection | IK04 conforming to IEC 62262 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Residual earth-leakage sensitity adjustment type | Adjustable |
| [IΔn] residual earth-leakage sensitive adjustment | 0.1 A 0.2 A 0.5 A 1 A |
| [δt] residual earth-leakage time delay adjustment | 5...10 s |
MPN
LV429459
